PMSM Engine
Description
Technical Parameters
AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of pmsm engine in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.
Brief Introduction
TYP5 series PMSM engine is a kind of high efficiency and energy saving permanent magnet variable frequency speed regulating motor, it can produce stable and powerful magnetic field, and achieve higher motor efficiency and wider operating range. Compared with traditional motors, PMSM engine has faster response speed and better starting performance, and more accurate control capabilities, which can be widely used in various industrial fields.
PMSM engine can not only bring higher benefits, but also contribute to environmental protection and energy saving. After adopting PMSM engine, it can greatly reduce energy consumption and exhaust gas emissions, reduce environmental pollution, and achieve the goal of sustainable development.
In addition, PMSM engine has more safe and reliable operation characteristics. The use of advanced control technology and protection measures can realize the automatic monitoring and protection of the motor, effectively avoid the occurrence of motor overload, short circuit and other faults, and improve the reliability and stability of the motor.
In general, series PMSM engine is a highly valuable technology, which can not only improve industrial production efficiency, but also protect the environment and improve the sustainability of industrial development. It is believed that in the future development, permanent magnet variable frequency speed regulating motor will have a wider range of applications.
Main Technical Parameters
|
Power Scope |
200~250kW |
|
Voltage |
380V |
|
Speed |
750rpm |
|
Cooling Mechod |
IC411 |
| Connection | Y |
| Duty | S1 |
| Efficiency | IE5 |
| Protection Grade | IP55 |
| Mounting Type | IM B3 |

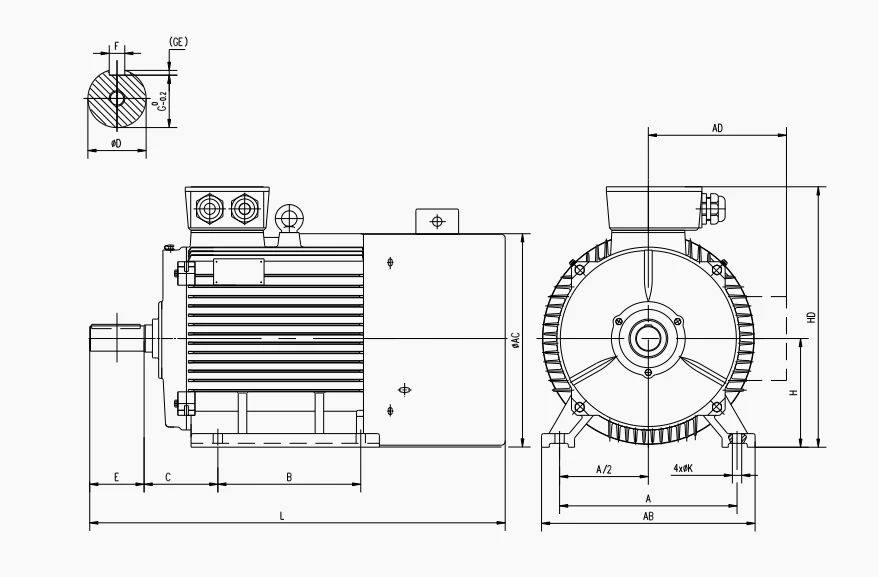

Outline Dimension

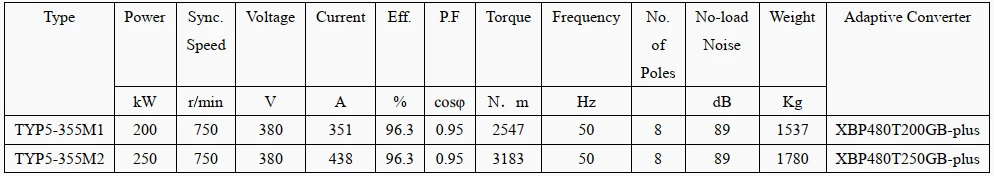

Technical Data
Applications
Cement
Power Station
Water conservation
Steel
 |
CHOOSE AIMIN, CHOOSE QUALITY! |
Hot Tags: pmsm engine, China, suppliers, manufacturers, factory, customized , quotation, low price, in stock, made in China, 2 pole permanent magnet motor, AC PM Motor, Permanent magnet ac, Pm synchronous generator, PMSM Machine, The magnet motor
