Permanent Synchronous Motor

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of permanent synchronous motor in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

The three phase permanent synchronous motor developed by our company is composed of two series, TYP5 series frequency conversion and speed regulating three phase permanent magnet synchronous motor and TCYP5 series frequency conversion and speed regulating three phase permanent magnet synchronous motor.

TYP5 and TCYP5 series permanent magnet motor (center height H80~H355) meet with GB/T 755 Rotating Electrical Machines- Ratings and Performance and GB30253 Permanent Magnet Synchronous Motor Efficiency Rated Value and Efficiency Grade, Level 1.

Adopting permanent-magnet rotor, this series motor has higher efficiency and power density than universal induction motors. Besides, driven by inverters, the motor has wide speed-regulating range, and can keep high efficiency in the speed regulating range. This series of motor can be widely used in energy-saving and environmental protection transformation and national water conservancy projects, as well as driving transmission machines such as water pumps, fans and conveyors.

The permanent magnet rotor can produce magnetic field by permanent magnet, which helps to improve power factor without wattless excitation current, and can offer ultra-high efficiency no matter the speed and load. Compared with induction motors, it has better efficiency performance in all speed-regulating range. The motor witnessed more obvious efficiency and power factor improvement in low speed and low torque conditions.

Motor type illustration:

TYP 5 - 160 M 1 - 30kW -3000r/min – W

Each motor has a nameplate, which shows the motor type and relevant technical data. Motor type is consist of several parts, as the example give above, "TYP" means the name of this series of motor, "5" refers to IE5 efficiency grade, "160" means the center height of the motor shaft, "M" refers to the length of the frame size, "1" is the length of the iron core, "30kW" is the motor's rated power, and "3000r/min" means the rated speed, finally is the "W" mark, it is the environmental mark, when this mark is not shown on the nameplate, it means the motor is assumed as standard motor which is not designed for special use. For this mark, here are some examples: "W" means motor used outdoors, "F1/F2" means motor used indoors and anti-corrosive environment, "TH" means three proofings, and "WF1/WF2" means motor used outdoors and anti-corrosive environment.

Main Technical Parameters

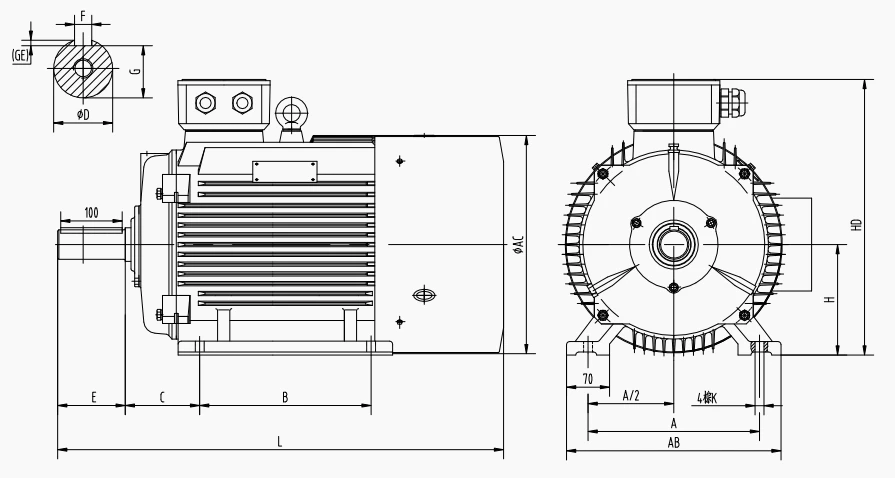

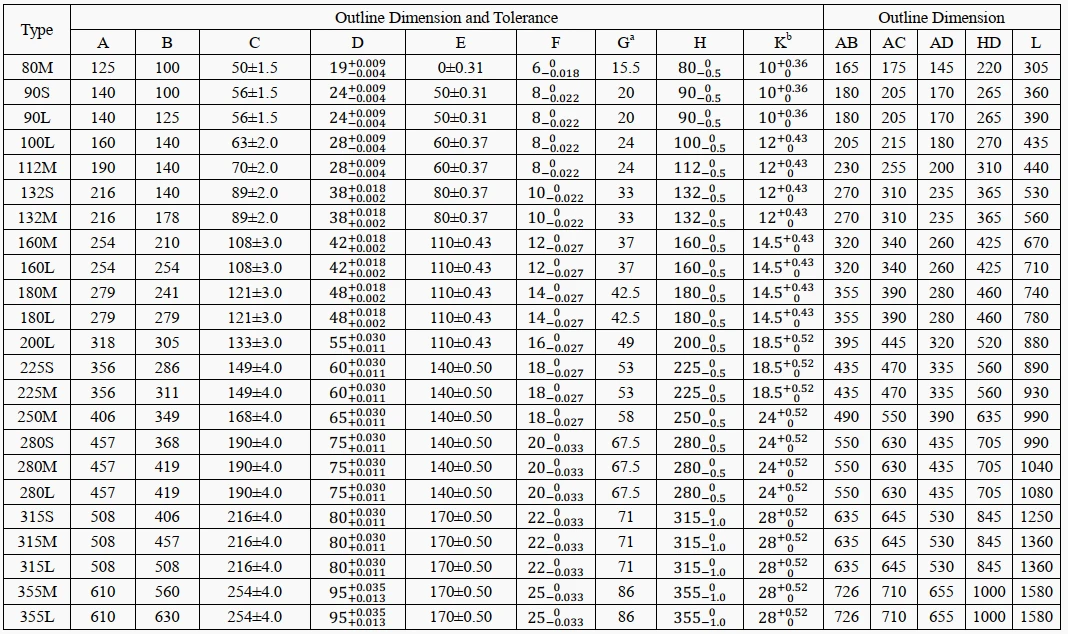

Outline Dimension

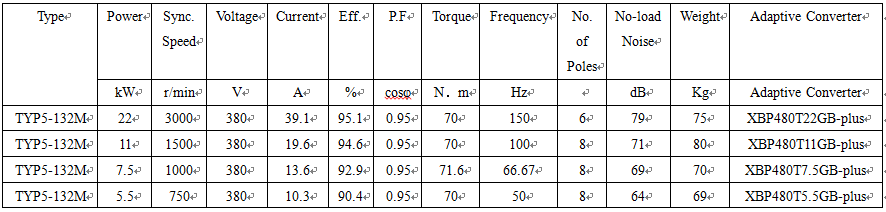

Technical Data

Cement

Power Station

Water conservation

Steel
