PM Motor Control

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of pm motor control in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

PM motor is a type of motor that is very widely used nowadays, which has the characteristics of low cost, high efficiency, fast acceleration response, etc. Especially in the field of new energy, it has become an important part of environmental protection and energy saving due to its high efficiency and reliability.

First of all, permanent magnet motors have the advantage of high efficiency. Compared with traditional motors, permanent magnet motors do not require additional current excitation and are therefore more energy efficient. At the same time, its rotor has strong magnetic force, which can easily complete the acceleration process from stop to the highest speed, greatly improving the power performance. Moreover, permanent magnet motors produce less heat and noise when running, which makes them more and more widely used in industry and life.

Secondly, permanent magnet motors are characterized by low cost. In the operation of permanent magnet motor, it does not need expensive excitation equipment, which makes the manufacturing cost of permanent magnet motor greatly reduced. At the same time, with the continuous improvement of permanent magnet material manufacturing technology, the manufacturing cost of permanent magnet motors will be further reduced, and more and more fields will begin to use permanent magnet motors.

Of course, the application of permanent magnet motors is not only limited to the industrial and transportation fields, but also in the field of medical treatment, smart home and other fields, also has a wide range of applications. For example, it can be applied in surgical robots to provide higher precision movement and operation, reducing surgical pain and recovery time. And in the field of smart home, permanent magnet motor can also be applied in smart locks, smart curtains and other household items to increase the reliability and utilization life of the products.

Main Technical Parameters

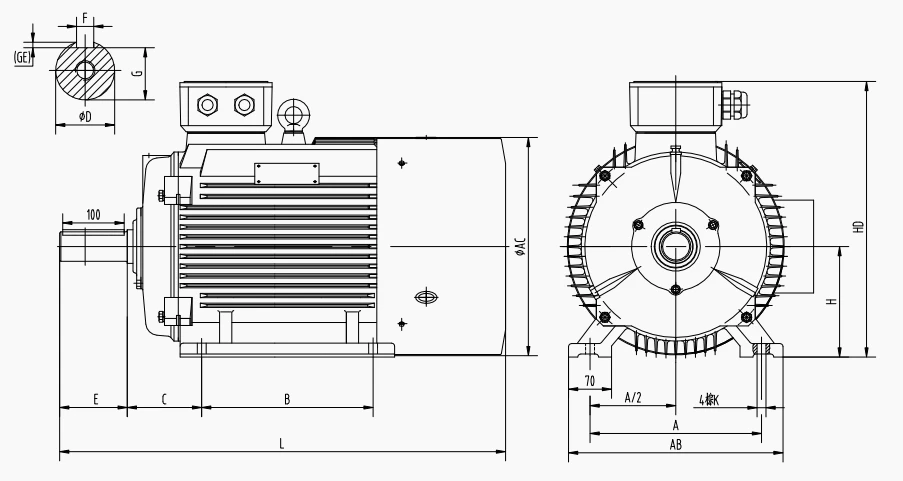

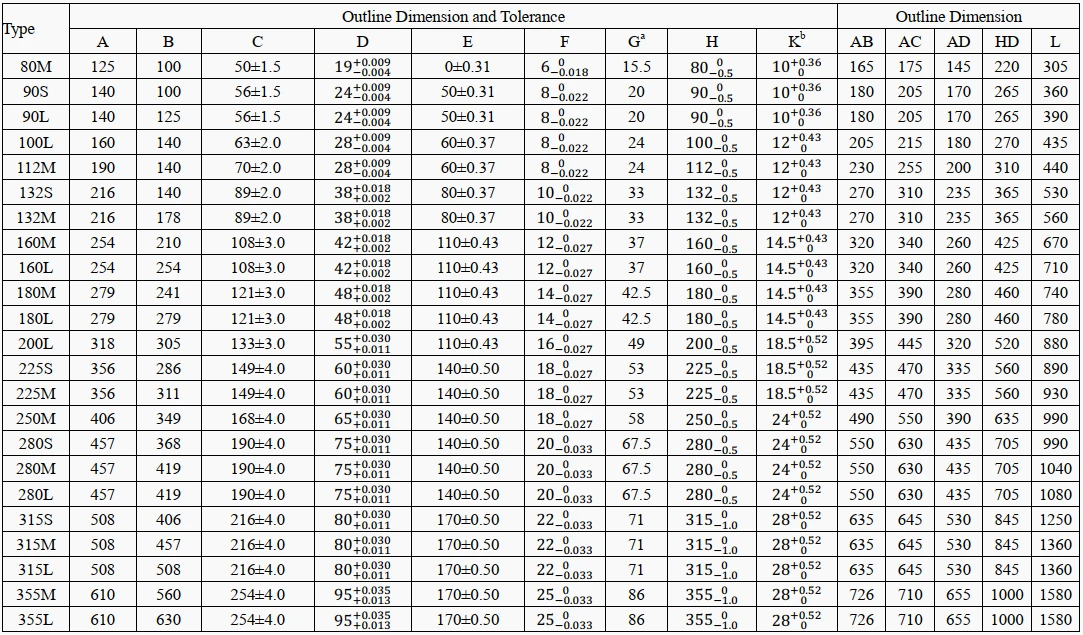

Outline Dimension

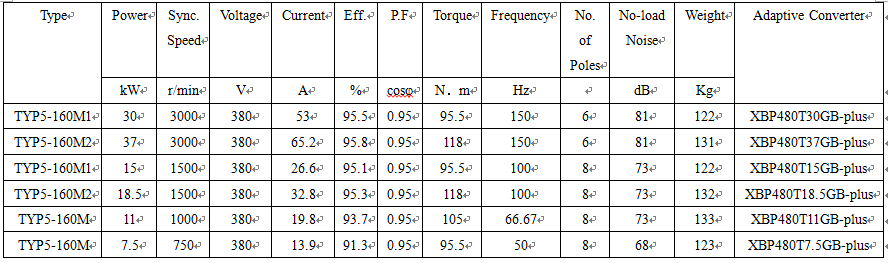

Technical Data

Cement

Power Station

Water conservation

Steel

CHOOSE AIMIN, CHOOSE QUALITY!
