Permanent Magnet Motor Synchronous

Permanent magnet motor synchronous is a specialized motor newly developed by our company. PM motor has the advantages of low-speed direct drive, high efficiency, wide economic operation range, well-speed regulation performance, high-speed direct drive, energy saving, low noise, low vibration, low temperature rise and so on. PM motor can be widely used in petrochemical, oil gas, metallurgy, mining, aerospace, electric power and other fields, which is suitable for mechanical equipment such as directly connected fan, water pump, compressor, belt conveyor and rolling mill, etc.

Send Inquiry

Description

Technical Parameters

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of permanent magnet motor synchronous in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

Characteristics of the permanent magnet motor synchronous

1. High efficiency and energy saving

The rotor of PM motor has no current, no copper consumption, the efficiency can reach more than 96%, and the power factor can reach more than 0.95;

High efficiency range is wide, light load area can also achieve high energy efficiency;

The transmission chain is simplified, and the mechanical transmission efficiency approximates 1.

2. High reliable system

The motor adopts import insulation materials; it has higher insulation system, and can provide more than 25 years' service;

The motor's transmission system composition is motor simple, some possible fault units, such as reducers and couplers are removed.

3. Good performance and large starting torque

The starting torque can reach more than 2.5 times the rated torque;

The starting current is small, thus, its impact on the power grid is small.

4. Intelligence

In accordance with the load needs, the motor can adjust the running state automatically, making energy-saving easy to achieve;

The system and centralized control can achieve two-way communication, real-time feedback and information process, which can be controlled remotely.

Main Technical Parameters

Frame	H90mm
Power Scope	1.1~4kW
Voltage	380V/660V
Frequency	50/60Hz
Number of Poles	2P, 4P, 6P, 8P
Synchronous Speed	3000rpm, 1500rpm, 1000rpm, 750rpm
Cooling Mechod	IC411
Protection Grade	IP54/IP55
Insulation Class	F(155℃)
Duty	S1
Connection	Y
Mounting Type	IM B3
Vibration	≤2.3mm/s
Ambient Temperature	-15℃ ～ +40℃
Altitude	≤1000m
Humidity	Average monthly peak relative humidity is 90%

Motor Parameters

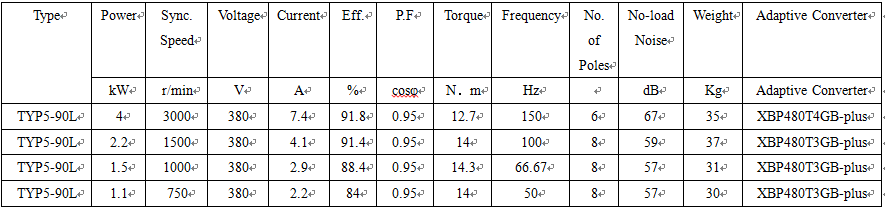

technical data of permanent magnet motor synchronous

Applications

Cement

Power Station

Water conservation

Steel
