Continuous Magnetic Motor
Description
Technical Parameters
AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of continuous magnetic motor in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.
Brief Introduction
Continuous magnetic motor is a type of synchronous motor that uses a permanent magnet to generate a magnetic field, and its rotor speed is consistent with the current frequency of the stator windings.
Continuous magnetic motor is consist of stator, rotor and end cover. The stator is basically the same as the ordinary induction motor, and adopts the laminated structure to reduce the iron consumption of the motor during operation. The rotor can be made of solid or laminated. The armature winding can adopt the centralized integral winding, but also the distributed short distance winding and the unconventional winding.
The working principle of a continuous magnetic motor is based on the interaction between the rotating magnetic field generated by the stator and the magnetic field generated by the permanent magnet on the rotor. The rotor is fitted with pre-magnetized permanent magnets, which are capable of producing a strong magnetic field when rotated, thus providing greater output torque. The control system of the motor precisely regulates the current to ensure that the motor rotor can rotate in sync with the rotating magnetic field and maintain a stable operating state.
Continuous magnetic motor is a widely used motor type, with high efficiency, good dynamic response performance, low noise and other advantages, and is widely used in electric vehicles, robots and other fields requiring high efficiency, high dynamic performance and low noise.
Main Technical Parameters
|
Power Scope |
90~250kW |
|
Voltage |
380V |
|
Speed |
750~3000rpm |
|
Cooling Mechod |
IC411 |
| Connection | Y |
| Duty | S1 |
| Efficiency | IE5 |
| Protection Grade | IP55 |
| Mounting Type | IM B3 |

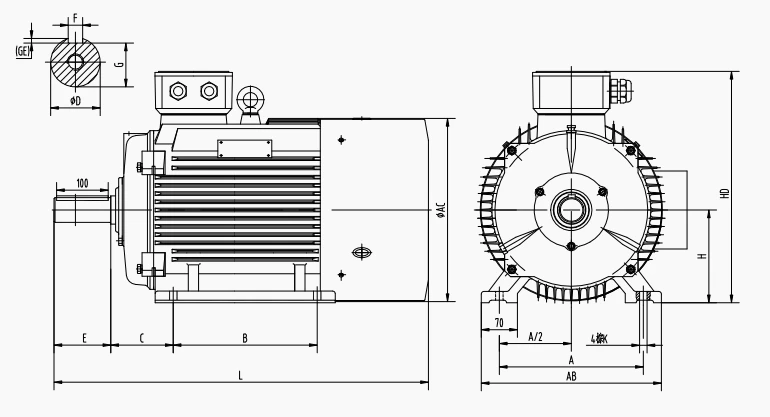

Outline Dimension

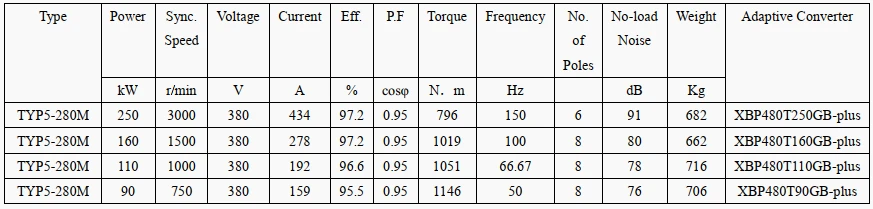

Technical Data
Applications
Cement
Power Station
Water conservation
Steel
 |
