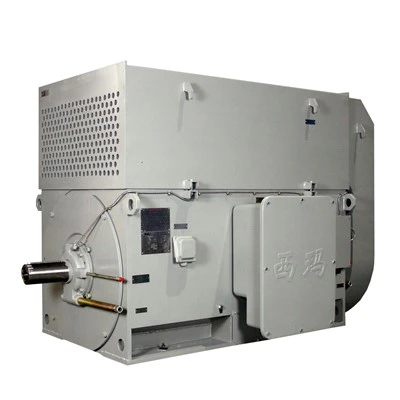

Y400-4SZT Three-phase Asynchronous Motor Ie 3 355kw 50Hz

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of Y400-4SZT Three-phase Asynchronous Motor Ie 3 355kw 50Hz in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

The motor ie3 is the core of this Y400-4SZT three-phase asynchronous motor developed and produced by Xi'an AIMIN Motor Co., Ltd., a professional manufacturer of large electric motors in China. Designed in accordance with JB/T 10446 industry standards and CE certification requirements, this high-voltage squirrel-cage asynchronous motor is built for continuous heavy-duty industrial operation under S1 duty cycle. It adopts IP23 protection grade and IC01 open-circuit cooling mode, suitable for well-ventilated workshop environments, with an ambient working temperature ranging from -15℃ to 40℃ and applicable altitude up to 1000 meters.

This motor is rated at 355kW power, 10000V stator voltage, 50Hz frequency, and a synchronous speed of 1485 r/min. Its stator rated current is 25.6A with star(Y) connection, power factor cosφ reaching 0.86, and thermal class 155 insulation system, which provides strong thermal tolerance and reliable long-running safety. For bearing configuration, the drive end uses NU224ECM cylindrical roller bearing while the non-drive end is equipped with 6224/C3 deep groove ball bearing. This bearing combination effectively bears radial and axial loads, reduces running friction, suppresses vibration and noise, and extends service life. The overall motor mass is 2440kg, with IM B35 mounting form for both foot and flange installation, bringing great flexibility for on-site arrangement of different equipment.

As a high-efficiency industrial motor, IE3 high-efficiency design runs through its electromagnetic and structural optimization. The optimized stator and rotor lamination and winding layout cut iron loss and copper loss significantly, achieving 93% efficiency. Compared with lower-efficiency motors, it greatly reduces long-term power consumption, helping enterprises lower operating costs and meet energy-saving and carbon reduction requirements. It has solid mechanical rigidity, stable starting performance, strong overload capacity, and can adapt to frequent startup and fluctuating load conditions.

This AIMIN high voltage motor is widely used to drive fans, water pumps, compressors and other mechanical equipment, serving power, metallurgy, chemical, mining and building material industries. Strict factory inspection is implemented for every unit before delivery to guarantee consistent quality.

Reliability and energy efficiency are the key advantages of this motor ie3. With mature design, robust construction and convenient maintenance, it is a preferred heavy-duty power solution for continuous industrial production. It delivers stable and durable operation under harsh working conditions, reduces unexpected downtime, and brings sustainable economic benefits to industrial users.

Main Technical Parameters

Production Details

Frame

• Box structure frame, easy for maintaining and installation

• Flexible dimensions

• Customizable outlook

---

Stator

• 99.9% pure copper winding ensures the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the windings are fitted in by handwork to ensure all slots are full and avoid any possible winding flaw.

---

Rotor

• Aluminum casting rotor with high quality silicon steel rotor core to assure induction efficiency

• Copper bar rotor is available for YKK motor

• Pprecisely machined shafts with good capacity of  toughness

---

Testing

• All motors must pass the testing before painting and packaging

• We regularly test existing and new products to ensure quality.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

Y HV Motor is the widely used in many general industries, such as blowers, pumps, crushers, cutting machines, and many other heavy machines. For more application details, contact us.

Cement

Power Station

Water conservation

Steel
