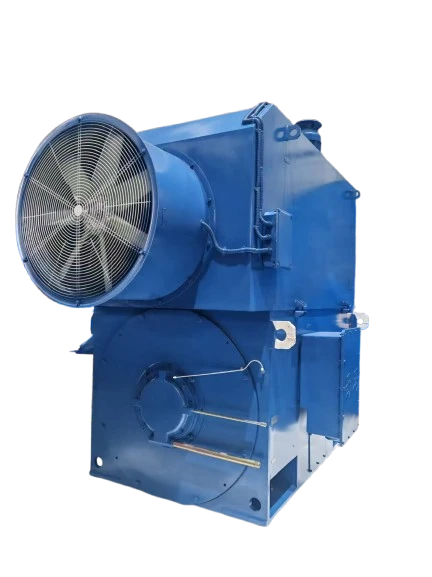

YJTKK5603-6 VVVF Three-phase Asynchronous Variable Frequency Motor
Description
Technical Parameters
AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of yjtkk5603-6 vvvf three-phase asynchronous variable frequency motor in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.
Title:
YJTKK5603-6 VVVF Three-phase Asynchronous Variable Frequency Motor
Brief Introduction
The variable frequency motor launched by Xi'an AIMIN Motor is a core power equipment integrating professionalism, stability and adaptability in the industrial field. Relying on Xi'an AIMIN Motor's decades of experience in motor R&D and manufacturing, this product has undergone rigorous quality control and performance testing, and is well-known in the industry for its reliable operation and durable quality. It is specially designed for the diverse driving needs of modern industrial scenarios, providing stable and efficient power support for various heavy-duty equipment, automated production lines and key industrial links.
Compared with conventional motors, this variable frequency motor has obvious advantages in adaptive performance and practical application. It adopts advanced variable-frequency control technology, which can flexibly adjust the operating speed according to the actual working conditions and load changes, realizing precise matching between power output and production needs. This not only effectively improves the operating efficiency of the equipment, but also reduces unnecessary energy consumption, helping enterprises achieve energy saving and cost reduction goals. At the same time, the product has been optimized in structural design, with reasonable internal layout and excellent heat dissipation performance, which can maintain stable operation even in harsh industrial environments such as high temperature, high humidity and heavy dust.
In terms of usability and safety, this variable frequency motor is also carefully designed. It is equipped with clear and standardized operating guidelines and safety warning marks, which is convenient for operators to carry out daily operation and maintenance. The mature manufacturing process ensures the low failure rate of the product during long-term operation, greatly reducing the maintenance cost and downtime loss of enterprises. Whether it is in the fields of metallurgy, mining, transportation, or in the production links of machinery manufacturing, chemical industry and building materials, this motor can exert excellent performance, making it a trustworthy choice for industrial enterprises to optimize power configuration and improve production efficiency.

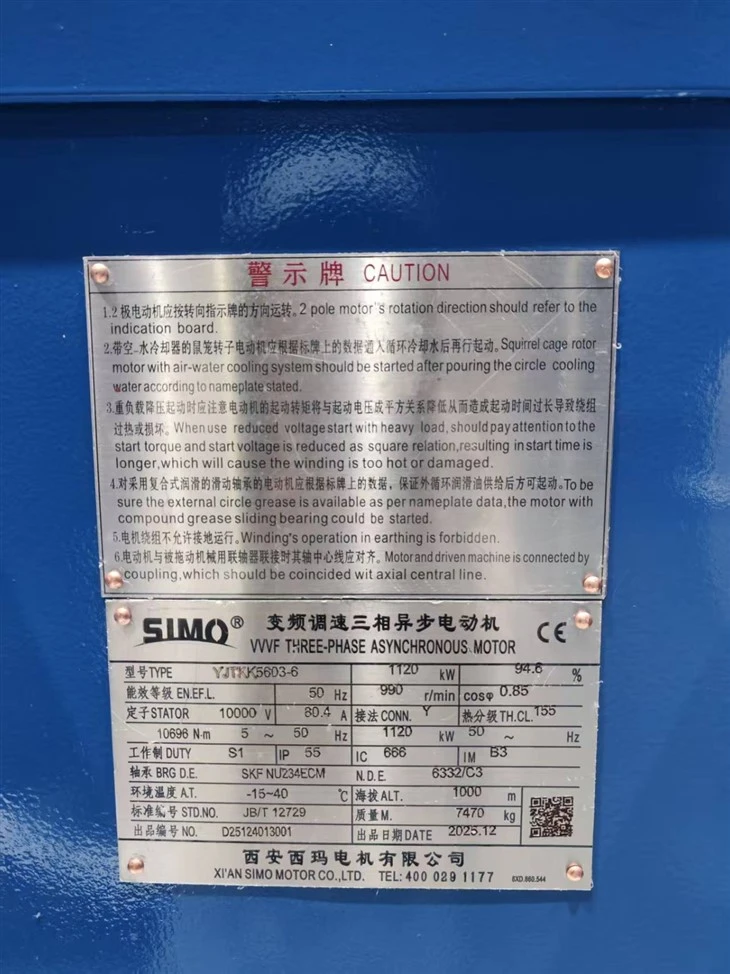

Main Technical Parameters
|
Frame: |
YJTKK5603-6 |
|
Power Scope: |
1120 kW |
|
Voltage: |
10000 V |
|
Frequency: |
50 Hz |
|
Number of Poles: |
6 |
|
Speed |
990 r/min |
|
Cooling Mechod |
IC 666 |
|
Protection Grade |
IP55 |
|
Ambient Temperature |
-15-40 ℃ |
|
Duty: |
S1 |
|
Mounting Method |
B3 |
Why choose AIMIN Brand YJTKK5603 series of Motor?
This variable-frequency three-phase asynchronous motor, backed by the manufacturer's mature production expertise, suits diverse industrial working conditions. It has clear operating guidelines and reliable adaptability, stably supporting various drive scenarios-making it a practical choice for industrial equipment power configurations.
Production Details
Frame
-
Box structure frame, easy for maintaining and installation
-
Flexible dimensions
-
Customizable outlook
Stator
-
99.9% pure copper winding ensures the output power and efficiency
-
Excellent insulation system with 5 more processing flows
-
All the windings are fitted in by handwork to ensure all slots are full and avoid any possible winding flaw.
Rotor
-
Aluminum casting rotor with high quality silicon steel rotor core to assure induction efficiency
-
Copper bar rotor is available for YKK motor
-
Pprecisely machined shafts with good capacity of toughness
Testing
-
All motors must pass the testing before painting and packaging
-
We regularly test existing and new products to ensure quality.
Package and delivery
-
All motors will be packaged well before delivery
-
Plastic cover inside, vacuum tin foil outer and then solid wood box
Applications
YJTKK5603 Motor is the widely used in many general industries, such as blowers, pumps, crushers, cutting machines, and many other heavy machines. For more application details, contact us.
Cement
Power Station
Water conservation
Steel
 |
CHOOSE AIMIN, CHOOSE QUALITY! |
Hot Tags: YJTKK5603-6 VVVF Three-phase Asynchronous Variable Frequency Motor, China, suppliers, manufacturers, factory, customized , quotation, low price, in stock, made in China, medium voltage electric motor, High Voltage AC Motor, industrial electric motors, high voltage induction motor, hvac motor, hvac electric motors
| Type | Power(kW) | Rated Voltage(V) | Rated Current(A) | Rated Speed(r/min 50Hz) | Eff.% (50Hz) |
Power Factor cosφ (50Hz) |
Max. Torque/Rated Torque |
Constant Torque Range (N·m 5~50Hz) |
Constant Power Range (kW 50~Hz) |
Low Static Load(kN) |
Dynamic Load (kN) |
Theory Weightkg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YJTKK4001-2 | 355 | 6300 | 40.8 | 2975 | 92.7 | 0.86 | 1.8 | 1130 | 355 | 13.8 | 16.7 | 2820 |
| YJTKK4002-2 | 400 | 6300 | 45.8 | 2975 | 93.0 | 0.86 | 1.8 | 1274 | 400 | 14.1 | 17.3 | 2870 |
| YJTKK4003-2 | 450 | 6300 | 51.4 | 2975 | 93.3 | 0.86 | 1.8 | 1433 | 450 | 14.3 | 17.9 | 2910 |
| YJTKK4004-2 | 500 | 6300 | 56.9 | 2975 | 93.6 | 0.86 | 1.8 | 1592 | 500 | 18.6 | 18.6 | 2970 |
