Brief Introduction

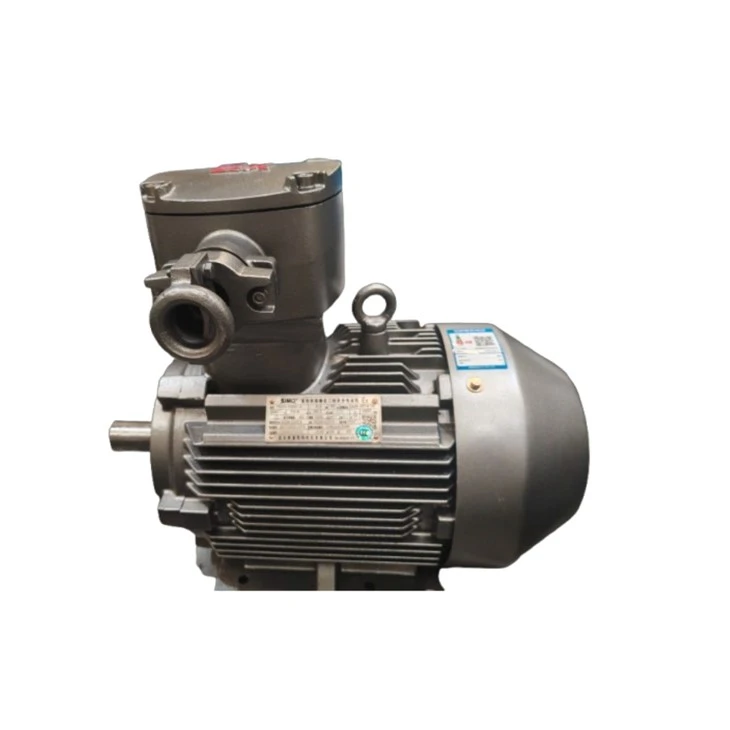

This high efficiency AC motor is a flameproof three-phase asynchronous motor manufactured by Xi'an AIMIN Electric Motor Co., Ltd., model YBX3-280S-4, designed for operation in hazardous locations with explosive gas mixtures. Rated power reaches 75 kW at 50 Hz power frequency, with rated voltage of 380 V and rated current of 136.3 A. Its rated speed is 1485 r/min, power factor 0.89, and efficiency up to 95.0%, meeting high energy-saving requirements for industrial driving equipment.

The motor adopts Exd IIB T4 Gb explosion-proof mark, which is certified for use in Zone 1 and Zone 2 explosive atmospheres of Class IIB gas groups. The protection class is IP55, effectively preventing dust intrusion and resisting water splash. The duty type is S1, enabling continuous long-time stable operation. The insulation class is F, with a maximum allowable winding temperature rise of 155℃, supporting an ambient working temperature up to 40℃ and applicable altitude up to 1000 meters. The mounting form is B3, a common foot-mounted structure for easy installation on pumps, fans, compressors and other industrial machinery.

For rotating support, DE and NDE ends are equipped with 6317/C3 and 6314/C3 bearings respectively, featuring proper internal clearance to reduce thermal expansion risk during continuous operation and extend service life. The product complies with industry standard JB/T12628-2016, and has obtained valid explosion-proof certificate CNEX24.5272 and 3C certification, fully satisfying domestic safety specifications for explosion-proof electrical products. This high efficiency AC motor weighs 625 kg, with production date Feb 2026, reliable quality traceability through unique production serial number J26026006001.

This high efficiency AC motor is widely applied in petroleum, chemical, coal, pharmaceutical and other explosive-risk industries as the core drive unit. It balances explosion-proof safety, stable performance and energy-saving advantages. Compared with ordinary explosion-proof motors, it cuts operating power consumption in long-term running, helping enterprises lower energy cost and carbon emission. The manufacturer provides professional technical support and after-sales service via hotline . It is a preferred driving solution for heavy-duty equipment working in flammable and explosive environments.

Main Technical Parameters

Production Details

Frame

• Compact and robust iron casting frame

• Universal IEC  installation dimensions available

• Customizable outlook and dimensions

---

Stator

• 99.9% pure copper winding for stator to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the windings are fitted in by handwork to ensure all slots are full and avoid any winding flaw.

---

Rotor

• Aluminum casting rotor with high quality silicon steel rotor core to assure induction efficiency

• Well and precisely machined shafts with good capacity of strength and toughness

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

YBX3 Explosion Proof Motor can be applied in areas with mixed dangerous and explosive gases, such as petroleum, chemical engineering, metallurgical industry, power and natural gas areas.

Chemistry

Coal mining

Metallurgy

Oil gas
