EX Generator

YBX4-series ex generator has advantages such as excellent Flame-proof property, high efficiency, energy saving, large temperature rise margin, long operation life, good property, low vibration, advanced Flame-proof structure, good starting performance, good-looking appearance, high reliability and no sparking while operating. This series of motor is mainly applied to drive equipments of coal mine, petroleum and gas, petrochemical industry, such as water pump, blower, compressor, conveyor and other machines.

Send Inquiry

Description

Technical Parameters

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of ex generator in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

During running of this series ex generator, pay attention to smoothness of vent hole, or, customers should consult the manufacturer whether it results in influence on service of the motor.

Under normal circumstances, common maintenance personnel shall not detach flameproof casing of the motor; if the part, which cannot be determined to be detached, constitute the flameproof casing, consult the manufacturer.

The flameproof casing of the motor shall be detached by professional repairman passing special training or manufacturer; if behavior of detaching the flameproof casing may result in influence on the flameproof surface, implement pressure test in accordance with

related regulations on delivery test prescribed within GB 3836.2 Explosive Environmental Part2: Flameproof Casing "d" Protected Equipment.

Do not touch wiring bolts even in process of motor halt when power on in case of danger of shock! Frequently inspect whether all fastening bolts of the flameproof casing of the motor are not loosened at regular or irregular time.

Main Technical Parameters

Frame	H160L
No. of Poles	2P, 4P, 6P, 8P
Power Scope	7.5~18.5kW
Voltage	380V/660V
Frequency	50/60Hz
Speed	750rpm, 1000rpm, 1500rpm, 3000rpm
Protection Grade	IP55
Insulation Class	F
Mounting Type	IM B35
Connection	Delta/Y
Mark of Explosion-proof	Exd I Mb, Exd II BT4Gb, Exd II CT4 Gb
Cooling Type	IC411
Efficiency Class	IE3
Duty	S1
Vibration	≤1.8mm/s
Ambient Temperature	-15℃ ～ +40℃
Altitude	≤1000m
Humidity	Average monthly peak relative humidity is 90%

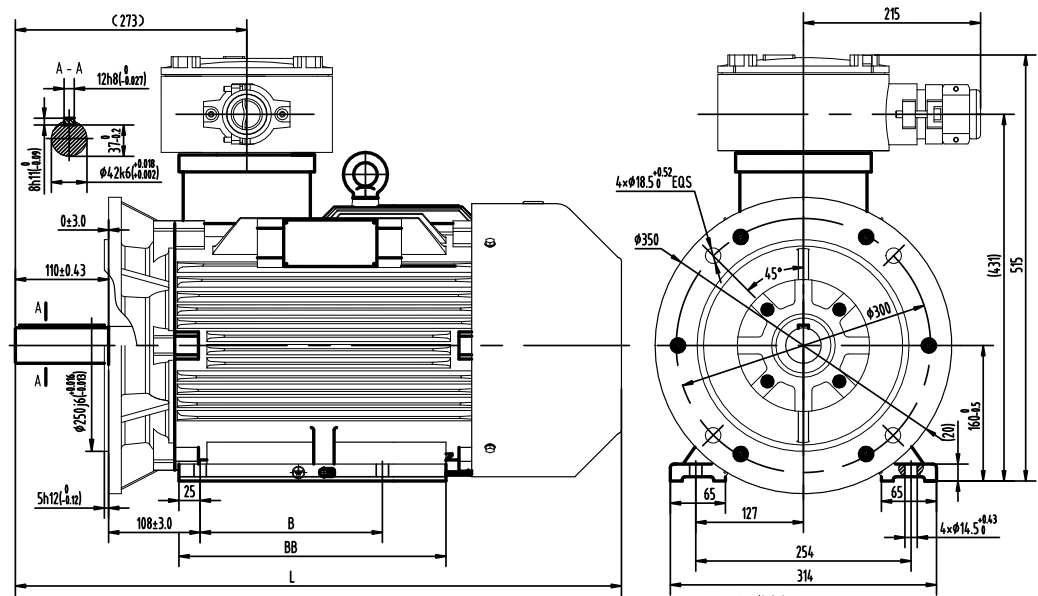

Outline Dimensions

outline dimension of ex generator

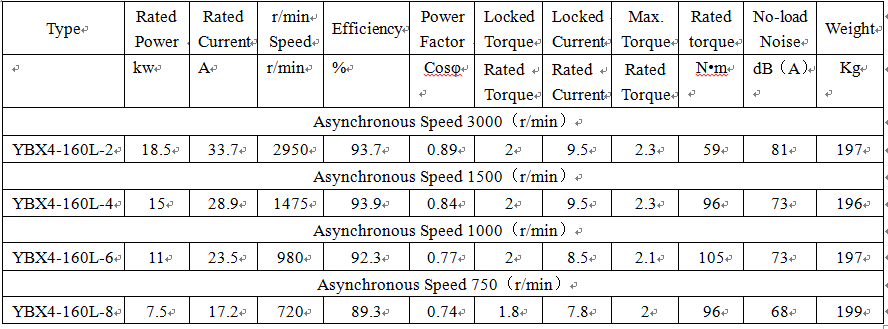

Technical Parameters

technical data of ex generator

Blowers, compressors, cutting machines, and many other heavy machines in chemical, power, mining, steel, manufacturing, etc.

Cement

Power Station

Water conservation

Steel
