Explosion Proof AC Motor 380V
Description
Technical Parameters
AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of explosion proof ac motor 380v in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.
Brief Introduction
YBX4 series explosion-proof AC motor 380V is a special kind of motor equipment, which can work in flammable and explosive environment and provide guarantee for production and life. This kind of motor has the characteristics of strong tightness, high temperature resistance, corrosion resistance, safety and reliability, and is an important equipment in chemical, petrochemical, coal mine, printing and dyeing, medicine and other industries.
The safety of explosion-proof low-voltage AC motor is one of its most important characteristics. In explosive dangerous places, ordinary motors may cause explosions due to sparks, overload and other reasons, leading to casualties and economic losses, and explosion proof AC motor 380V can prevent this situation through a special closed design, providing a safer guarantee for production and life.
In addition, the explosion-proof low-voltage AC motor also has good high temperature resistance and corrosion resistance. In a special working environment, the motor has to withstand the erosion of high temperature and strong acid and alkali and other corrosive substances for a long time, and the special materials and manufacturing process of explosion-proof low-voltage AC motor can effectively combat these factors and ensure the normal work of the equipment.
In addition, explosion-proof low-voltage AC motor also has the characteristics of energy saving, environmental protection and so on. Through the use of special technology and efficient explosion proof AC motor 380V design, more ideal energy efficiency and environmental benefits can be achieved, which is also of great significance for the environmental protection and sustainable development of enterprises.
Main Technical Parameters
|
Frame |
H180M |
| No. of Poles | 2P |
|
Power Scope |
22kW |
|
Voltage |
380V/660V |
|
Frequency |
50/60Hz |
|
Speed |
3000rpm |
|
Protection Grade |
IP55 |
|
Insulation Class |
F |
| Mounting Type | IM B3 |
| Connection | Delta/Y |
| Mark of Explosion-proof | Exd I Mb, Exd II BT4Gb, Exd II CT4 Gb |
| Cooling Type | IC411 |
| Efficiency Class | IE3 |
| Duty | S1 |
| Vibration | ≤1.8mm/s |
| Ambient Temperature |
-15℃ ～ +40℃ |
| Altitude | ≤1000m |
| Humidity | Average monthly peak relative humidity is 90% |

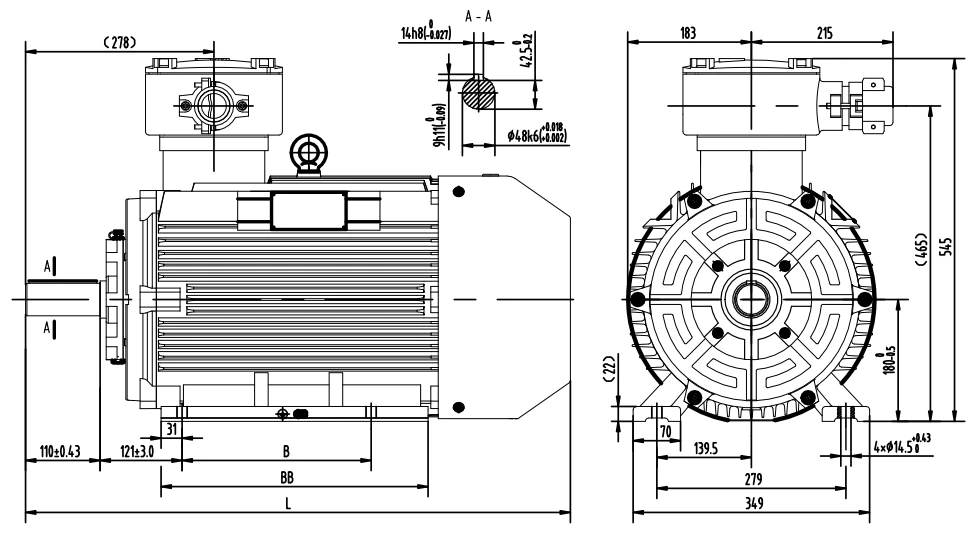

Outline Dimensions
Applications
Blowers, compressors, cutting machines, and many other heavy machines in chemical, power, mining, steel, manufacturing, etc.
Cement
Power Station
Water conservation
Steel
 |
CHOOSE AIMIN, CHOOSE QUALITY! |
Hot Tags: explosion proof ac motor 380v, China, suppliers, manufacturers, factory, customized , quotation, low price, in stock, made in China, explosion proof electric motor, 6000v ex motor, explosion proof fan motor, ex proof motor, flame proof motor, explosion proof ac motor
|
Type |
Rated Power kW |
Rated Current A |
Speed r/min |
Efficiency % |
Power Factor Cosφ |
Locked Torque |
Locked Current |
Max. Torque |
Rated torque N•m |
No-load Noise dB(A) |
Weight Kg |
|
Rated Torque |
Rated Current |
Rated Torque |
|||||||||
|
Asynchronous Speed 3000(r/min) |
|||||||||||
| YBX4-180M-2 | 22 | 40 | 2960 | 94 | 0.89 | 2 | 9.5 | 2.3 | 70 | 83 | 244 |
