Explosion Proof Generator

YBX3-series explosion proof generator enclosure has advantages such as excellent Flame-proof property, high efficiency, energy saving, large temperature rise margin, long operation life, good property, low vibration, advanced Flame-proof structure, good starting performance, good-looking appearance, high reliability and no sparking while operating. This series of motor is mainly applied to drive equipment of coal mine, petroleum and gas, petrochemical industry, such as water pump, blower, compressor, conveyor and other machines.

Send Inquiry

Description

Technical Parameters

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of explosion proof generator in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

Axes of this series explosion proof generator enclosure and mechanism drawn are aligned by testing and regulating the feeler gauge on upper, lower, left and right points of the shaft coupling. Indicators of upper, lower, left and right clearances of the shaft coupling shall be consistent (or error is within 0.04-0.05mm); the motor shaft and mechanism drawn are rotated by taking 90 degrees as a spacing, and it shall measure and record for four times within one week. For alignment of concentricity of the motor and the mechanism drawn, two dial indicators are arranged on one side of the motor and are respectively in contact with side faces of backrest wheels of two half couplings; zero positions of the two dial indicators are regulated; the dial indicators, as long as being fixed, shall not be moved; the motor shaft is rotated together with shaft of the mechanism drawn by 360 degrees, and indicators of the two dial indicators shall be same and repeat original indicators; otherwise, recheck whether dial indicators are firm, if so, it shows that two shafts are not concentric and shall be regulated once again. Finish regulation when indicators of the two dial indicators are within 0.04-0.05mm. After regulating, firmly fix the motor and mechanism drawn on base plate or foundation through bolt, align and check once again, and finish alignment if confirming that position is not moved.

Main Technical Parameters

Frame	H315L
No. of Poles	2P, 4P, 6P, 8P, 10P
Power Scope	75~200kW
Voltage	380V/660V
Frequency	50/60Hz
Speed	600rpm, 750rpm, 1000rpm, 1500rpm, 3000rpm
Protection Grade	IP55
Insulation Class	F
Mounting Type	IM B3
Connection	Delta/Y
Mark of Explosion-proof	Exd I Mb, Exd II BT4Gb, Exd II CT4 Gb
Cooling Type	IC411, IC416
Efficiency Class	IE3
Duty	S1
Vibration	≤1.8mm/s
Ambient Temperature	-15℃ ～ +40℃
Altitude	≤1000m
Humidity	Average monthly peak relative humidity is 90%

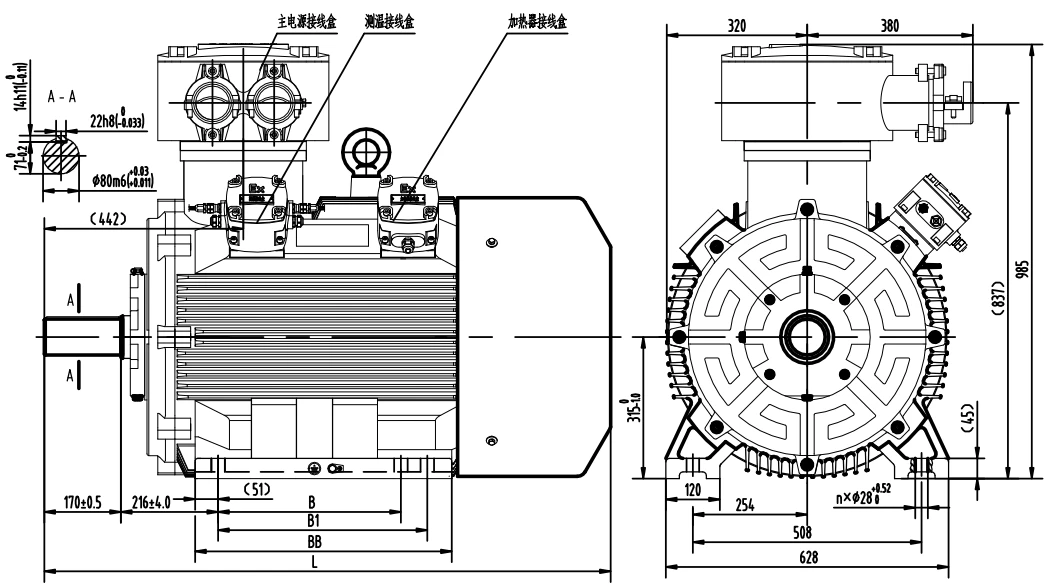

Outline Dimensions

outline dimension of explosion proof generator

Technical Parameters

technical parameters of explosion proof generator

Blowers, compressors, cutting machines, and many other heavy machines in chemical, power, mining, steel, manufacturing, etc.

Cement

Power Station

Water conservation

Steel
