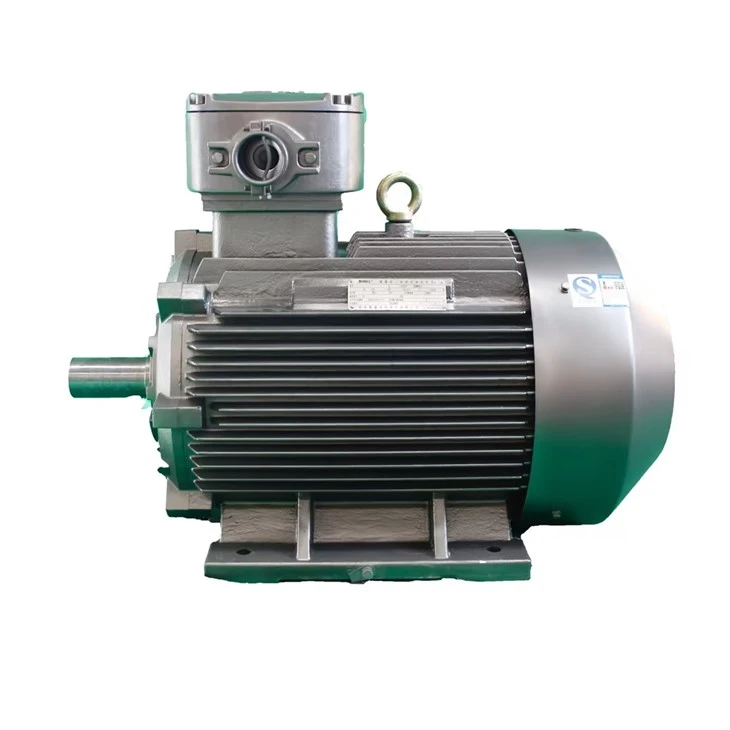

Spark Proof Motor

YBX3-series spark proof motor has advantages such as excellent Flame-proof property, high efficiency, energy saving, large temperature rise margin, long operation life, good property, low vibration, advanced Flame-proof structure, good starting performance, good-looking appearance, high reliability and no sparking while operating. This series of motor is mainly applied to drive equipment of coal mine, petroleum and gas, petrochemical industry, such as water pump, blower, compressor, conveyor and other machines.

Send Inquiry

Description

Technical Parameters

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of spark proof motor in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

To protect the spark proof motor's surface from chipping, scratching or rust during process of motor installation, dismantling and maintenance in case of failure of flameproof performance! Fastening bolt connected to flameproof casing is essential; fastener grade shall not be lower than regulations of drawing or technical material.

When adopting detachable screws or bolts to fasten any part of the flameproof casing, hole and screw hole (or bottom hole thereof) shall not penetrate casing wall; metal thickness around the hole shall not be less than 1/3 of hole diameter and more than 3mm. Screwing depth of fastening bolt shall not be less than 1.5 times of bolt diameter; when the fastening bolt is completely screwed and gasket is not considered, thread allowance shall be reserved between tail and bottom of the screw hole.

Anti-loosening measures shall be adopted for fastening bolt; when spring gasket is adopted to prevent loosening, to guarantee elasticity, tightening torque of fastening bolt shall meet standard regulations. Non-metal parts of flameproof casing shall meet related regulations on non-metal part prescribed within GB 3836.2 Explosive Environment Part 2: Flameproof Casing "d" Protected Equipment. Outer diameter of user's incoming cable shall be consistent with seal ring of terminal box. The seal ring of line inlet of main terminal box permits five cables differing in diameter to pass through.

Main Technical Parameters

Frame	H200L
No. of Poles	2P, 4P, 6P, 8P
Power Scope	15~37kW
Voltage	380V/660V
Frequency	50/60Hz
Speed	750rpm, 1000rpm, 1500rpm, 3000rpm
Protection Grade	IP55
Insulation Class	F
Mounting Type	IM B35
Connection	Delta/Y
Mark of Explosion-proof	Exd I Mb, Exd II BT4Gb, Exd II CT4 Gb
Cooling Type	IC411, IC416
Efficiency Class	IE3
Duty	S1
Vibration	≤1.3mm/s
Ambient Temperature	-15℃ ～ +40℃
Altitude	≤1000m
Humidity	Average monthly peak relative humidity is 90%

Outline Dimensions

outline dimension of spark proof motor

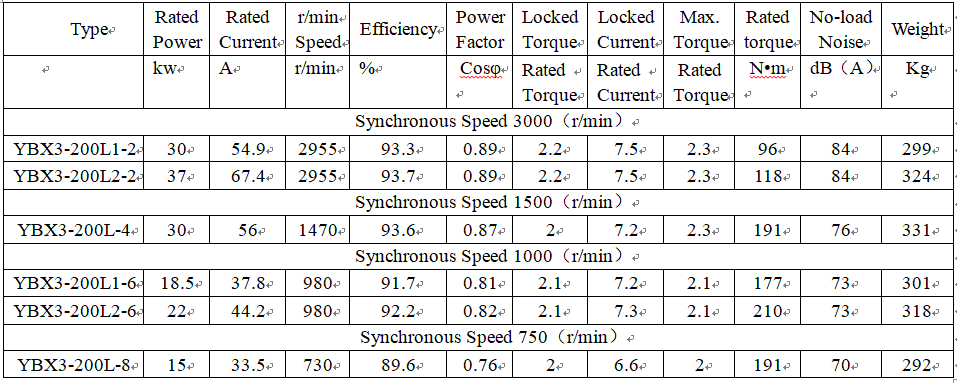

Technical Parameters

technical parameters of spark proof motor

Blowers, compressors, cutting machines, and many other heavy machines in chemical, power, mining, steel, manufacturing, etc.

Cement

Power Station

Water conservation

Steel
