Explosion Proof Fan Motor

Explosion proof fan motor has advantages such as excellent Flame-proof property, high efficiency, energy saving, large temperature rise margin, long operation life, good property, low vibration, advanced Flame-proof structure, good starting performance, good-looking appearance, high reliability and no sparking while operating. This series of motor is mainly applied to drive equipments of coal mine, petroleum and gas, petrochemical industry, such as water pump, blower, compressor, conveyor and other machines.

Send Inquiry

Description

Technical Parameters

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of explosion proof fan motor in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

Explosion proof fan motor is a kind of fan motor specially used in dangerous environments, which uses special design and materials to ensure that the motor does not produce sparks and does not cause explosions during the entire operation process, thus ensuring the safety of personnel and equipment.

The application of explosion-proof fan motor is very wide, mainly used in oil and gas, chemical industry and other toxic, explosive, flammable scenes. For example, production plants, refining and chemical plants, chemical plants, petrochemical plants, etc., need a large number of applications of explosion-proof fan motors to ensure production safety.

The advantages of explosion-proof fan motors are not only their reliability and safety, but also their efficiency and energy saving. Because it is specifically designed for hazardous environments, it can better adapt to various environments in use. At the same time, its material is also very special, long service life, low maintenance costs, and energy consumption can also be controlled to a certain extent, thus improving the economic efficiency of the entire plant.

Main Technical Parameters

Frame	H355
No. of Poles	2P, 4P, 6P, 8P, 10P
Power Scope	220~315kW
Voltage	380V/660V
Frequency	50/60Hz
Speed	600rpm, 750rpm, 1000rpm, 1500rpm, 3000rpm
Protection Grade	IP55
Insulation Class	F
Mounting Type	IM B3
Connection	Delta/Y
Mark of Explosion-proof	Exd I Mb, Exd II BT4Gb, Exd II CT4 Gb
Cooling Type	IC411
Efficiency Class	IE3
Duty	S1
Vibration	≤2.3mm/s
Ambient Temperature	-15℃ ～ +40℃
Altitude	≤1000m
Humidity	Average monthly peak relative humidity is 90%

Outline Dimensions

outline dimension of explosion proof fan motor

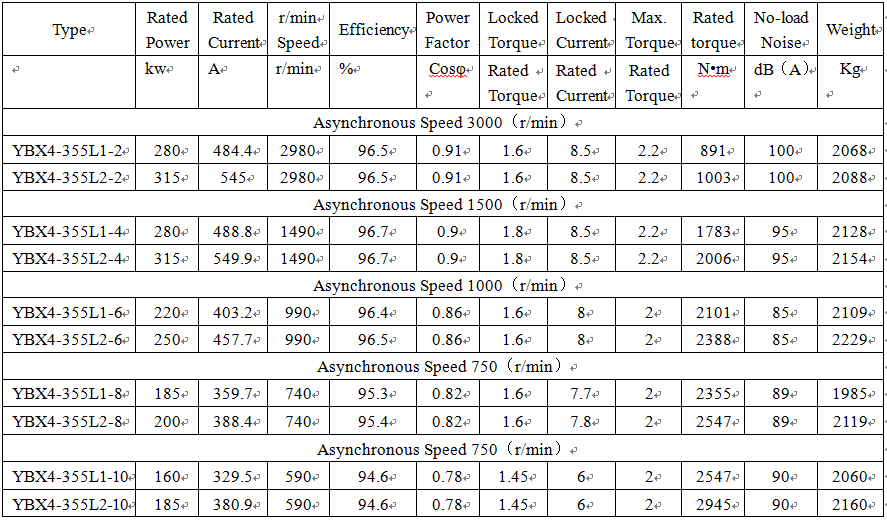

Technical Parameters

technical data of explosion proof fan motor

Blowers, compressors, cutting machines, and many other heavy machines in chemical, power, mining, steel, manufacturing, etc.

Cement

Power Station

Water conservation

Steel

CHOOSE AIMIN, CHOOSE QUALITY!

Hot Tags: explosion proof fan motor, China, suppliers, manufacturers, factory, customized , quotation, low price, in stock, made in China, 6000v ex motor, ex proof motor, explosion proof fan motor, flame proof motor, explosion proof electric motor, Explosion Proof Motor
