YFB160M-4 Dust Explosion-Proof Three-Phase Asynchronous Exde Motor 380V

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of yfb160m-4 dust explosion-proof three-phase asynchronous exde motor 380v in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Title:

YFB160M-4 Dust Explosion-Proof Three-Phase Asynchronous Motor

Brief Introduction

The YFB160M-4, manufactured by AIMIN brand, is a robust and reliable dust three-phase asynchronous exde motor designed to meet the stringent demands of industrial environments where explosive dust hazards exist. This model is part of the YFB series, which is engineered to provide safe and efficient operation in facilities handling conductive dusts, such as chemical processing, grain processing, and metal powder production.

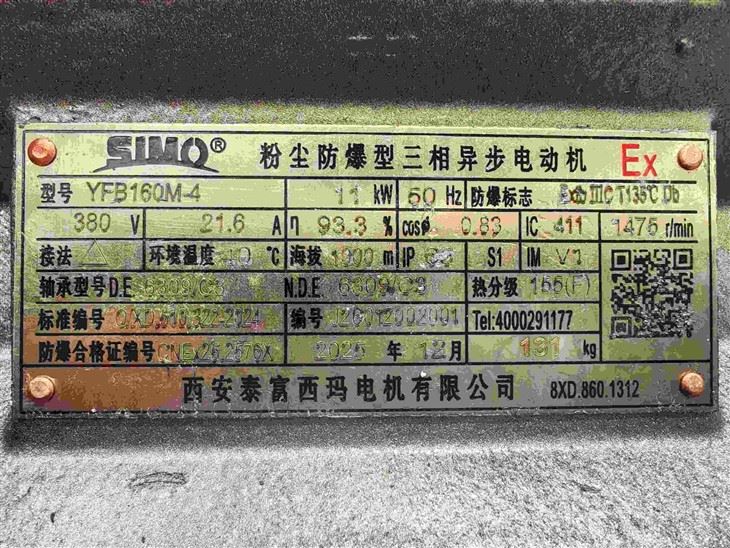

With a rated power output of 11 kW and a rated speed of 1475 r/min, the YFB160M-4 exde motor delivers consistent performance for a wide range of industrial applications. It operates at a rated voltage of 380 V and a frequency of 50 Hz, with a rated current of 21.6 A. The motor boasts an impressive efficiency rating of 93.3% and a power factor (cosφ) of 0.83, ensuring energy-saving operation and reduced operational costs over its lifespan. The motor is connected in a delta (△) configuration, which is optimal for its power rating and application.

Safety is a paramount feature of the YFB160M-4. It carries the Ex tb IIIC T135℃ Db explosion-proof certification, signifying its suitability for use in Zone 21 and Zone 22 areas where conductive dusts are present. This certification ensures that the motor can operate safely without igniting surrounding dust clouds or deposits, with a maximum surface temperature of 135℃ to prevent thermal ignition. The motor also adheres to the enterprise standard Q/XD.610.322-2024 and holds an explosion-proof certificate number CNEx25.2576X, attesting to its compliance with rigorous safety regulations.

In terms of construction and durability, the YFB160M-4 exde motor features a high-grade insulation system with a thermal class of 155(F), enabling it to withstand elevated temperatures and maintain reliable performance under demanding conditions. It is equipped with 6309/C3 bearings at both the drive end (D.E.) and non-drive end (N.D.E.), which provide enhanced load capacity and longevity, even in high-temperature or high-speed applications. The motor has an IP65 ingress protection rating, offering complete protection against dust ingress and water jets, making it suitable for harsh and dusty industrial environments. It is designed for S1 continuous duty operation, ensuring it can run continuously without compromising performance or safety.

The YFB160M-4 exde motor is designed for versatility, with an installation type of IM V1 (vertical mounting with a foot, shaft extension downward) and a cooling method of IC 411 (self-ventilated, fully enclosed with an external fan). It is rated for operation at altitudes up to 1000 m and ambient temperatures up to 40℃, making it adaptable to a variety of geographical and environmental conditions. Weighing 131 kg, this motor is robustly built to withstand the rigors of industrial use while maintaining a compact footprint.

Overall, the YFB160M-4 from AIMIN is a high-performance, safety-certified motor that combines efficiency, durability, and reliability. It is an ideal choice for industrial operations that require a dependable and explosion-proof solution to drive critical equipment, ensuring both operational continuity and personnel safety in hazardous environments.

Main Technical Parameters

Why choose AIMIN Brand YFB series of Motor?

The YFB series from AIMIN is a top choice for industrial operations in dust-explosive environments. With models like the 11 kW YFB160M-4, it delivers high efficiency (93.3%) and reliable performance. Certified Ex tb IIIC T135℃ Db, it ensures safety in conductive dust zones (21/22). Its IP65 protection, robust 6309/C3 bearings, and S1 continuous duty make it durable, energy-saving, and ideal for critical applications.

Production Details

Frame

• Compact and robust iron casting frame

• Universal IEC installation dimensions available

• Customizable

---

Stator

• 99.9% pure copper winding for stator to ensure the efficiency

• Excellent insulation system with 5 more processing flows

• All the windings are fitted in by handwork to ensure all slots are full and avoid any winding flaw.

---

Rotor

• Aluminum casting rotor with high quality silicon steel rotor core to assure induction efficiency

• Well and precisely machined shafts with good capacity of strength and toughness

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

The YFB  Explosion Proof Motor is widely applied in coal mine, petrochemical industry or other industry which may exposed to explosive environment. It can drive blower, water pump and other machines.

Chemistry

Coal mining

Metallurgy

Oil gas
