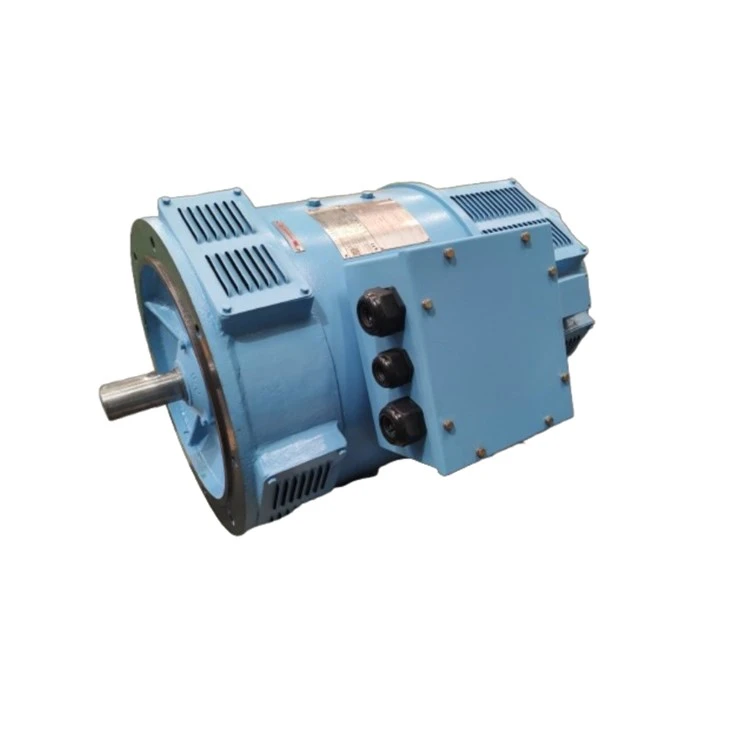

ZDB-82 TS F2 220 DC Motor 30kW 220V

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of zdb-82 ts f2 220 dc motor 30kw 220v in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

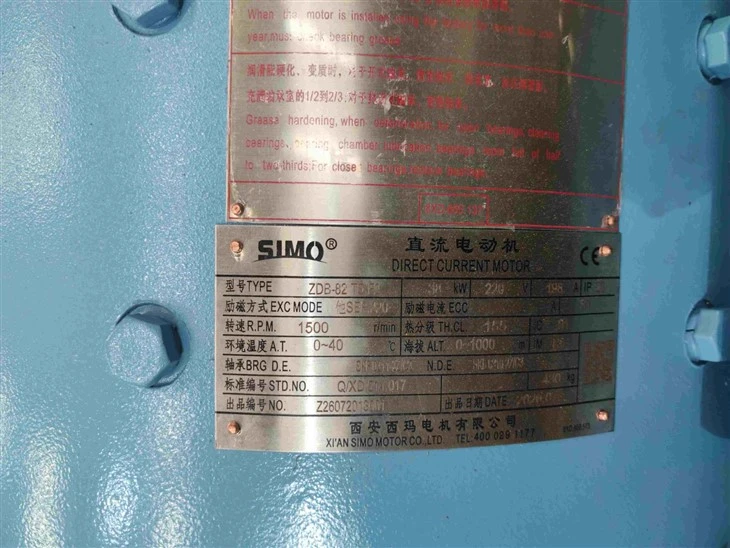

Manufactured by Xi'an AIMIN Motor Co., Ltd, the 220 dc motor model ZDB‑82 T3‑F2 is an industrial‑grade direct‑current motor optimized for variable‑speed heavy‑duty operations. Rated at 31 kW power, 220V armature voltage and 1500 r/min speed, this S1 continuous‑duty DC motor features separate excitation, 158A armature current, IP23 protection and Class 155 insulation. It works reliably within 0‑40℃ ambient temperature and altitude up to 1000 meters. Widely adopted in metallurgy mills, paper‑making machines, material processing equipment and heavy‑duty transmission lines, it perfectly fits industrial facilities that demand adjustable rotating speed and stable torque performance.

What makes this 220 dc motor stand out in global industrial markets lies in its well‑rounded practical advantages built for harsh operating sites. Benefiting from separate‑excitation design, it achieves smooth wide‑range speed adjustment and maintains steady torque output under frequent start‑stop and load fluctuation. High‑quality bearings are installed on both drive‑end and non‑drive‑end sides to reduce friction loss and mechanical noise. The solid cast housing weighs 480 kg, offering outstanding vibration resistance when facing shock loads. Class 155 high‑temperature‑resistant insulation protects windings from overheating during long‑hour continuous running. Certified with CE, it meets international safety requirements for overseas projects. Operators should regularly check bearing grease; hardened or deteriorated grease needs timely treatment to prevent premature bearing failure. Simple internal layout simplifies daily inspection and part replacement, cutting onsite maintenance difficulty greatly.

Industrial end‑users and distributors prioritize dependability, long service life and accessible after‑sales when sourcing DC drive equipment. This 220 dc motor is built on the mature ZDB‑series proven design, delivering stable heavy‑load performance that ordinary DC motors cannot match. It adapts to both brand‑new production line construction and legacy‑equipment retrofitting. Every motor completes strict performance testing before delivery. Our team provides professional technical consulting to help customers verify parameters matching their actual working conditions. With stable quality, accessible spare‑part supply and competitive total‑of‑life cost, ZDB‑82 T3‑F2 becomes a preferred DC power solution for worldwide buyers for variable‑speed heavy‑duty industrial applications.

Main Technical Parameters

Production Details

Frame

• Compact and robust iron casting frame

• Universal IEC installation dimensions available

• Customizable outlook and dimensions

---

Armature

• 99.9% pure copper bar for armature to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the copper bars are fitted in by handwork to ensure all slots are full and avoid any possible flaw.

---

Winding

• All windings are made of pure copper to assure induction efficiency

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

The motor can be widely used in many famous cement or concrete plants and many other similar industries.

Cement

Oil gas

Steel

Sugar
