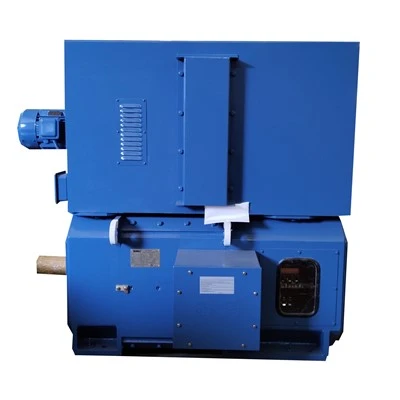

ZDL-180-41 DC Shunt Series Motor 220V 3000 r/min

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of zdl-180-41 dc shunt series motor 220v 3000 r/min in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

The ZDL shunt series motor represents a benchmark in precision industrial drive solutions, engineered to deliver uncompromised performance for applications demanding accurate speed regulation and high torque density. Designed with shunt excitation as standard, these motors offer exceptional speed stability across variable loads, making them a preferred choice for industries such as machine tool manufacturing, textile machinery, and automated material handling systems where precision and reliability are critical.

A core strength of the ZDL shunt series motor lies in its robust thermal and mechanical design. Each motor incorporates a Class H insulation system, capable of withstanding ambient temperatures from 0°C to 40°C and operating at altitudes up to 1,000 m, ensuring consistent performance even in harsh, dust-prone environments. With an IP54 protection rating, the series is safeguarded against water splashes and particulate ingress, reducing maintenance needs and extending service life. Mechanically, the motors feature premium SKF bearings on both drive and non-drive ends, minimizing vibration and friction to support continuous S1 duty cycles.

Available in a range of power outputs from 15 kW to 30 kW, the ZDL shunt series motor offers flexible mounting configurations including IM V1 vertical and IM B3 horizontal options, enabling seamless integration with diverse industrial setups. Adhering to the JB/T7592 industry standard, each motor undergoes rigorous testing to ensure compliance with global quality and safety benchmarks. Backed by AIMIN's technical support hotline and decades of expertise in motor engineering, the ZDL series combines precision control with rugged durability, delivering low operational costs and maximum uptime for critical production processes. Whether powering high-speed packaging lines or precision machining tools, the ZDL series DC motors provide the reliability and performance that modern industrial operations demand.

Main Technical Parameters

Production Details

Frame

• Compact and robust iron casting frame

• Universal IEC  installation dimensions available

• Customizable outlook and dimensions

---

Armature

• 99.9% pure copper bar for armature to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the copper bars are fitted in by handwork to ensure all slots are full and avoid any possible flaw.

---

Winding:

• All windings are made of pure copper to assure induction efficiency

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

Cement

Oil gas

Steel

Sugar

CHOOSE AIMIN, CHOOSE QUALITY!
