ZDH06-13 Direct Current 13kw Motor 220V Ip54

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of zdh06-13 direct current 13kw motor 220v ip54 in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Title:

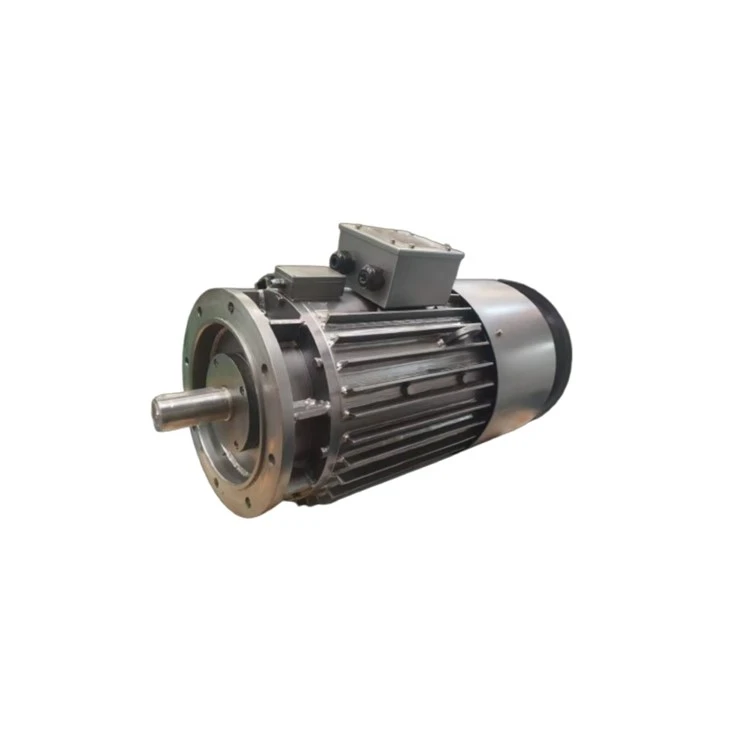

ZDH06-13 Direct Current Motor

Brief Introduction

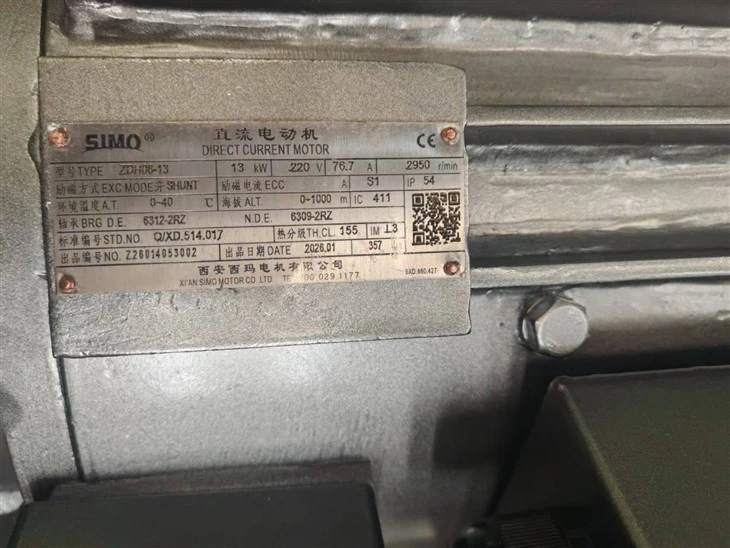

The AIMIN ZDH06-13 is a precision shunt-excited DC 13kw motor from Xi'an AIMIN ELECTRICS Co., Ltd., a leading industrial motor manufacturer. It has a rated power of 13 kW, rated voltage of 220 V, rated current of 76.7 A, and rated speed of 2950 r/min. Designed for continuous S1 operation, it features IP54 ingress protection, Class 155 (F) thermal insulation, and IC411 self-ventilated cooling. It complies with the Q/XD.514.017 standard and holds CE certification, ensuring reliability and global market access.

This 13kw motor is ideal for applications requiring stable speed control, such as precision machine tools, small conveyors, packaging machinery, and laboratory equipment. Its consistent performance under varying loads makes it suitable for light manufacturing, printing, and material handling industries. It is also well-suited for use in environments with moderate dust and moisture, where reliable, continuous operation is critical.

Key advantages include stable speed characteristics from shunt excitation, reliable operation in moderate environments due to IP54 protection, and low maintenance with high-quality 6312-2RZ and 6309-2RZ bearings. The Class 155 insulation system ensures excellent thermal stability, while the IC411 cooling method efficiently dissipates heat during continuous operation. Backed by AIMIN's quality reputation, the ZDH06 13kw motor is a cost-effective, dependable choice for industrial operators worldwide.

Main Technical Parameters

Production Details

Frame

• Compact and robust iron casting frame

• Universal IEC installation dimensions available

• Customizable outlook and dimensions

---

Armature

• 99.9% pure copper bar for armature to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the copper bars are fitted in by handwork to ensure all slots are full and avoid any possible flaw.

---

Winding

• All windings are made of pure copper to assure induction efficiency

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

The motor can be widely used in many famous cement or concrete plants and many other similar industries.

Cement

Oil gas

Steel

Sugar

CHOOSE AIMIN, CHOOSE QUALITY!
