Z4 Series DC Motor 440V
Description
Technical Parameters
AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of z4 series dc motor 440v in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.
Brief Introduction

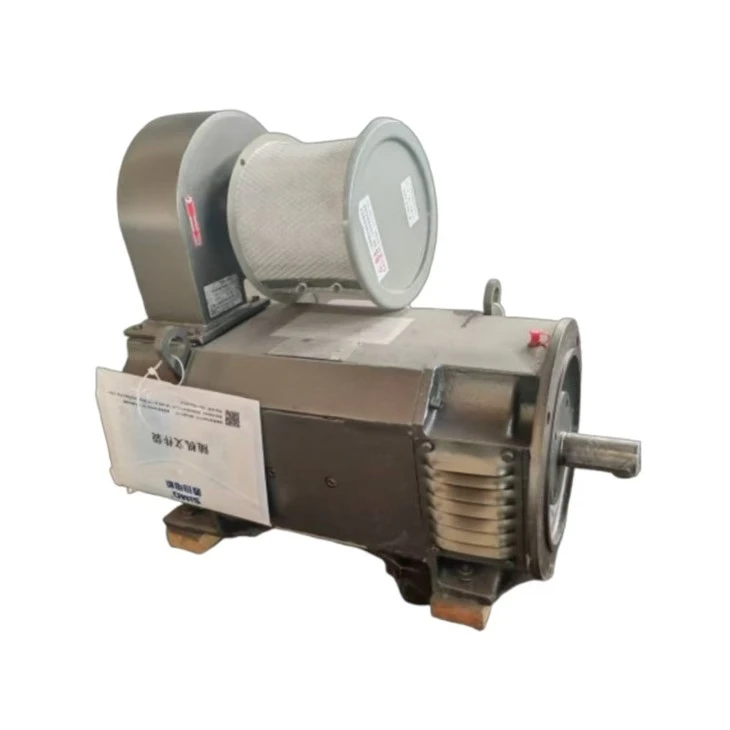

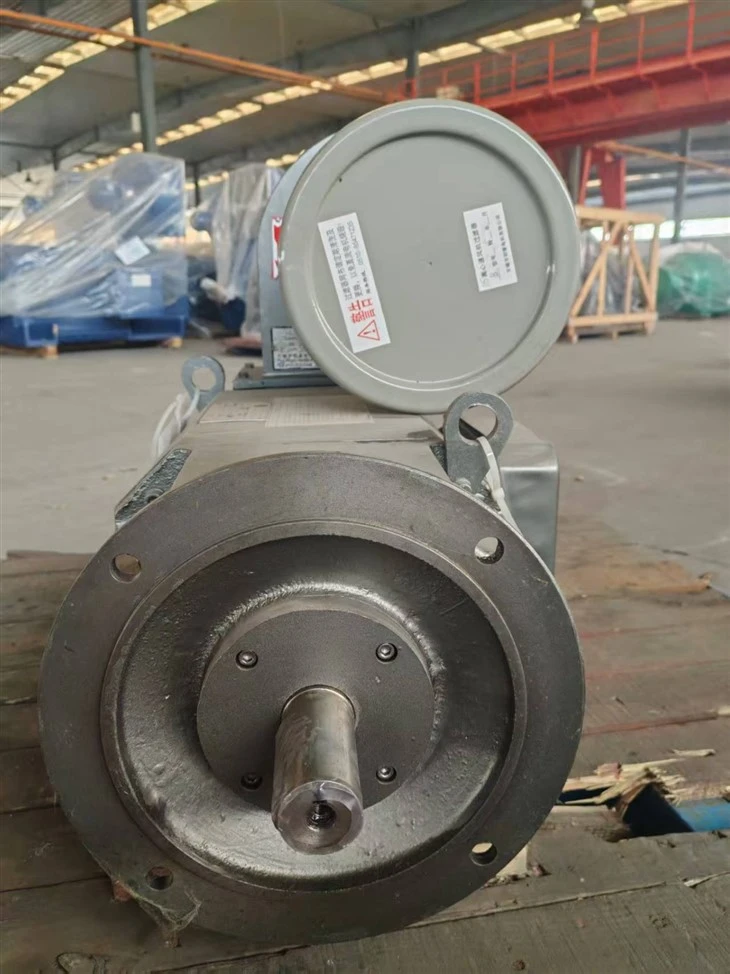

This Z4 series DC motor boasts a rated power of 15kW, operating at 440V voltage with a 39.3A current. It supports a wide speed regulation range of 1510/2500r/min (compatible with the industry-standard 200-3000rpm speed range) and adopts the IC 06 cooling method for stable, high-efficiency performance.

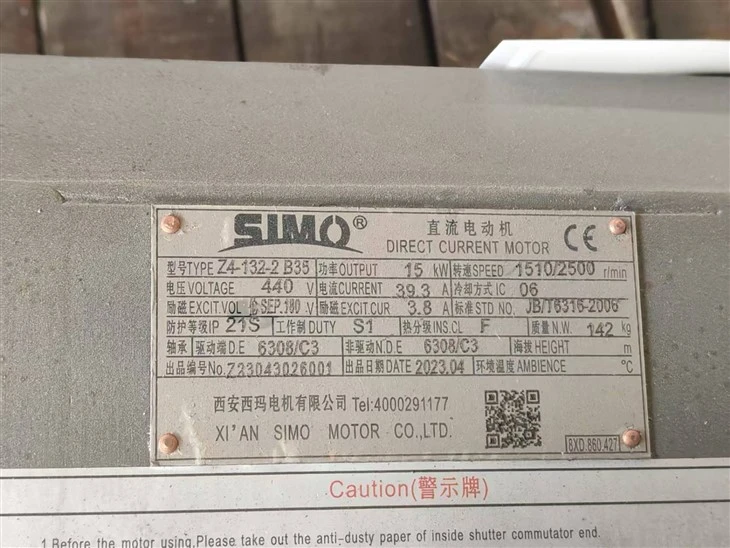

Equipped with Class F insulation, an IP21S protection rating, and 6308/C3 bearings, it supports S1 continuous duty operation. Combining low-noise operation and robust overload capacity, it is well-suited for complex working conditions across industries including iron and steel, metallurgy, papermaking, and printing. Additionally, this Z4 series DC motor offers an 180V excitation voltage (3.8A excitation current), enabling flexible matching of industrial equipment power demands.
As a mature model manufactured by Xi'an AIMIN Motor, this product has been widely deployed in sectors such as metallurgical steel rolling, papermaking & printing, and oil drilling. The Z4 series DC motor supports customized parameter specifications, has a net weight of 142kg, and delivers excellent durability and adaptability.
Main Technical Parameters
|
Frame: |
Z4-132-2 B35 |
|
Power Scope: |
15 kW |
|
Voltage: |
440 V |
|
Exciting Mode: |
Separate Exciting |
|
Exciting Voltage: |
180 V |
|
Speed: |
1510/2500 r/min |
|
Cooling Method |
IC 06 |
|
Protection Grade |
IP21S |
|
Insulation Class |
F Class |
|
Duty: |
S1 |
|
Mounting Type |
/ |
Production Details
Frame
-
Compact and robust iron casting frame
-
Universal IEC installation dimensions available
-
Customizable outlook and dimensions
Armature
-
99.9% pure copper bar for armature to ensure the output power and efficiency
-
Excellent insulation system with 5 more processing flows
-
All the copper bars are fitted in by handwork to ensure all slots are full and avoid any possible flaw.
Winding:
-
All windings are made of pure copper to assure induction efficiency
Testing
-
All motors must pass the piece testing before painting and packaging
-
Type tests will be regularly performed for each series, more often for new developed series and variants.
Package and delivery
-
All motors will be packaged well before delivery
-
Plastic cover inside, vacuum tin foil outer and then solid wood box
Applications
Cement
Oil gas
Steel
Sugar
 |
CHOOSE AIMIN, CHOOSE QUALITY! |
Hot Tags: Z4 Series DC Motor 440V, China, suppliers, manufacturers, factory, customized , quotation, low price, in stock, made in China, cement DC motor, 220 v dc motor, DC Motor, rolling mill dc motor, oilfield motors, locomotive motor
| Type |
Rated Power (kW) |
Rated Speed (r/min) |
Rated Current (A) |
Speed with Field Weskened (r/min) |
Exciting Power(W) |
Armature Circuif Resistance Ω(20℃) |
Armature Inductance (mH) |
Magnetic Inductance (H) |
Efficiency (%) |
GD² Moment of Inertia (kg m²) | Weight |
| Z4-132-2 | 20 | 2800 | 55.4 | 3600 | 730 | 0.223 | 3.65 | 10 | 87.8 | 0.4 | 142 |
| 22 | 3090 | 55.3 | 3600 | 730 | 0.223 | 3.65 | 10 | 88.3 | 0.4 | 142 | |
| 15 | 1510 | 39.3 | 2500 | 730 | 0.806 | 13.5 | 7.9 | 83.4 | 0.4 | 142 | |
| 10 | 905 | 31.1 | 1400 | 730 | 1.62 | 27.5 | 7.8 | 75.6 | 0.4 | 142 | |
| 11 | 1000 | 30.7 | 1400 | 730 | 1.62 | 27.5 | 7.8 | 77.7 | 0.4 | 142 |
