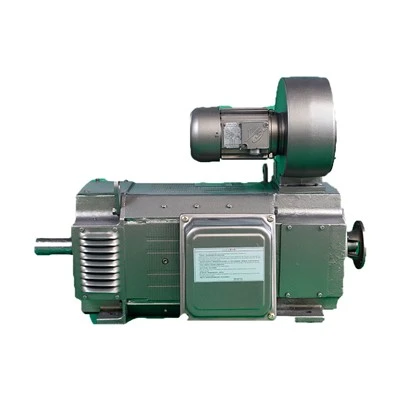

ZDL4-200-31 DC Shunt Motor 220 V 1500 r/min

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of zdl4-200-31 dc shunt motor 220 v 1500 r/min in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

This is a DC shunt motor manufactured by Xi'an AIMIN Motor Co., Ltd. Its core features include:

Compatible with 220V power supply, rated current of 151A, and stable speed of 1500 r/min, suitable for continuous operation (S1 duty cycle);

Class F insulation (heat resistance up to 155℃) and IP55 protection (dustproof and waterproof), enabling stable operation in environments with 0~40℃ temperature and 0~1000m altitude;

Equipped with 6314/6214 series bearings, using IM L3 mounting, weighing 525kg, and complying with JB/T7592 industry standards. It is a common power component in industrial equipment.

Typical Application Scenarios for DC Shunt Motor

This 30kW shunt-wound DC motor is mainly used in industrial fields requiring stable speed regulation and high starting torque:

Machine tools: Spindle/feed drive for lathes and milling machines (supports precise speed control);

Conveying machinery: Power source for belt conveyors and hoists (adapts to continuous operation needs);

Metallurgy/mining equipment: Drive for small winches and crushers (resistant to harsh industrial environments);

Printing/packaging machinery: Power component for production lines requiring constant-speed operation;

Textile machinery: Transmission system for spinning and weaving machines (adapts to variable working conditions).

Main Technical Parameters

Production Details

Frame

• Compact and robust iron casting frame

• Universal IEC  installation dimensions available

• Customizable outlook and dimensions

---

Armature

• 99.9% pure copper bar for armature to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the copper bars are fitted in by handwork to ensure all slots are full and avoid any possible flaw.

---

Winding:

• All windings are made of pure copper to assure induction efficiency

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

Cement

Oil gas

Steel

Sugar

CHOOSE AIMIN, CHOOSE QUALITY!
