Y Delta Motor Wiring

This series of Y delta motor wiring is a new generation product based on the company's long-term stable high-voltage three-phase asynchronous motor’s experience of design and manufacturing, combined with the latest international standards. This series of high and low voltage three-phase asynchronous motor has many advantages, such as compact structure, light weight, high efficiency, energy saving, low noise, low vibration, high reliability, long service life, easy installation and maintenance, etc. The motors can operate when ambient temperature is -15℃~+40℃; the altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).

Send Inquiry

Description

Technical Parameters

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of y delta motor wiring in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

Platinum RTD PT100 is applied to Y delta motor wiring, which can realize real-time monitoring and protection of motor temperature, with the following advantages:

1. Real-time temperature monitoring

In the operation process, temperature of Y delta motor wiring changes directly, which affect its performance and service life. By installing PT100 inside the motor or on the winding, the temperature change of the motor can be monitored in real time to ensure that it operates within the safe range.

2. Overheating protection

When the motor temperature exceeds the set threshold, PT100 can issue an alarm or cut off the power supply in time to prevent the motor from being damaged due to overheating. This protection mechanism can effectively extend the service life of the motor and reduce maintenance costs.

3. Improvement of operation efficiency

By monitoring the temperature of the motor with Y delta motor wiring, it can optimize the running status of the motor and avoid the efficiency loss caused by overheating. Reasonable temperature control can improve the overall operating efficiency of the motor and reduce energy consumption.

4. Adapt to harsh environments

In some high-temperature or humid industrial environments, PT100's stability and durability make it an ideal temperature sensor. Even under extreme conditions, the PT100 maintains good performance and ensures safe motor operation.

Main Technical Parameters

Frame	H500mm
Power Scope	800kW~1120kW
Voltage	10kV
Frequency	50Hz, 60Hz
Number of Poles	4P
Speed	1490rpm
Cooling Mechod	IC611
Protection Grade	IP55
Insulation Class	F(155℃)
Duty	S1
Mounting Type	IM B3

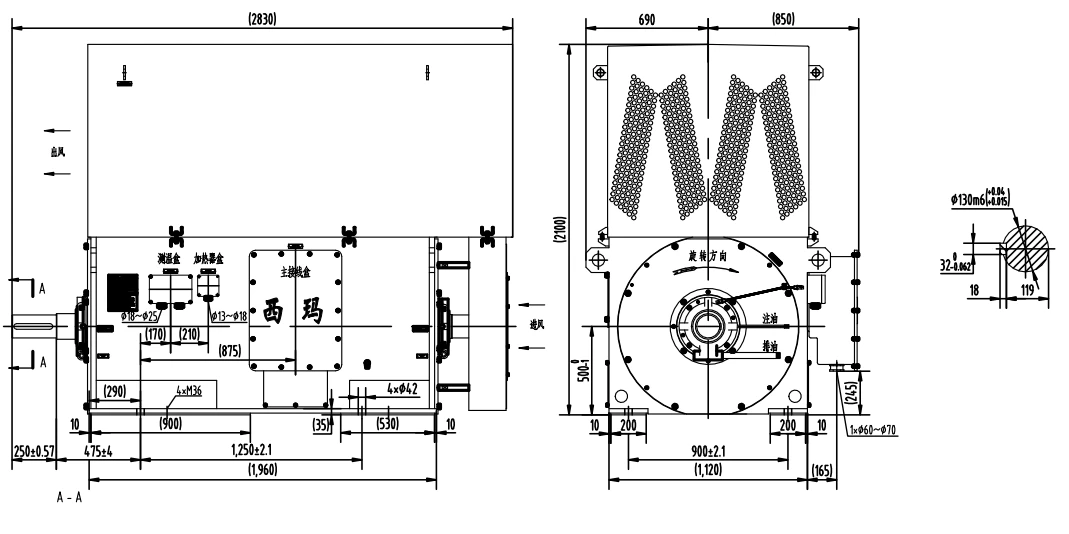

Outline Dimensions

outline dimension of y delta motor wiring

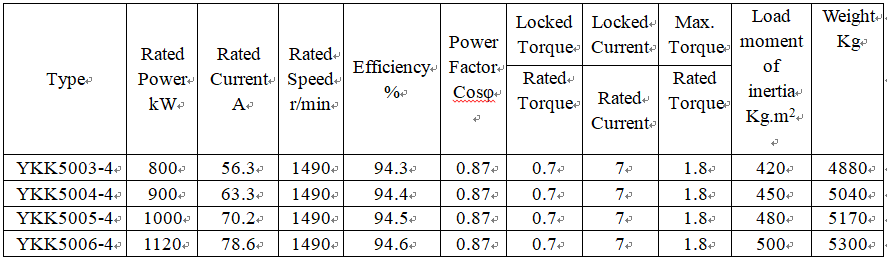

Motor Parameters

technical data of y delta motor wiring

Applications

Cement

Power Station

Water conservation

Steel
