Y Connection 3 Phase Motor

This series of Y connection 3 phase motor is a new generation product based on the company's long-term stable high-voltage three-phase asynchronous motor’s experience of design and manufacturing, combined with the latest international standards. This series of high and low voltage three-phase asynchronous motor has many advantages, such as compact structure, light weight, high efficiency, energy saving, low noise, low vibration, high reliability, long service life, easy installation and maintenance, etc. The motors can operate when ambient temperature is -15℃~+40℃; the altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).

Send Inquiry

Description

Technical Parameters

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of y connection 3 phase motor in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

In practice, the combination of Y connection 3 phase motor and PT100 has achieved remarkable results. For example, in the hoist of a large mine, a Y connection 3 phase motor is used with a PT100 temperature sensor. By monitoring the temperature of the motor in real time, the operator is able to detect potential overheating problems and take appropriate measures to ensure the safe and stable operation of the equipment.

In addition, in the chemical industry, the drive system of certain reactors also adopts the combination of Y connection 3 phase motor and PT100. Through the precise control of motor temperature, it can effectively avoid the uncontrolled chemical reaction caused by high temperature and ensure production safety.

The combination of Y connection 3 phase motor and platinum RTD PT100 provides a safer, more stable and efficient power solution for modern industry. Through real-time temperature monitoring and overheating protection, it can effectively extend the service life of the motor, improve operational efficiency and reduce maintenance costs. In future industrial development, this combination will continue to play an important role in promoting technological progress and equipment upgrading in various industries.

With the continuous progress of science and technology, intelligence and automation of electric motors will become a trend. The combination of Y connection 3 phase motor and PT100 is a reflection of this trend. We look forward to seeing more efficient and intelligent motor systems playing a greater role in various industries in the near future.

Main Technical Parameters

Frame	H500mm
Power Scope	560kW~900kW
Voltage	10kV
Frequency	50Hz, 60Hz
Number of Poles	6P
Speed	995rpm
Cooling Mechod	IC611
Protection Grade	IP55
Insulation Class	F(155℃)
Duty	S1
Mounting Type	IM B3

Outline Dimensions

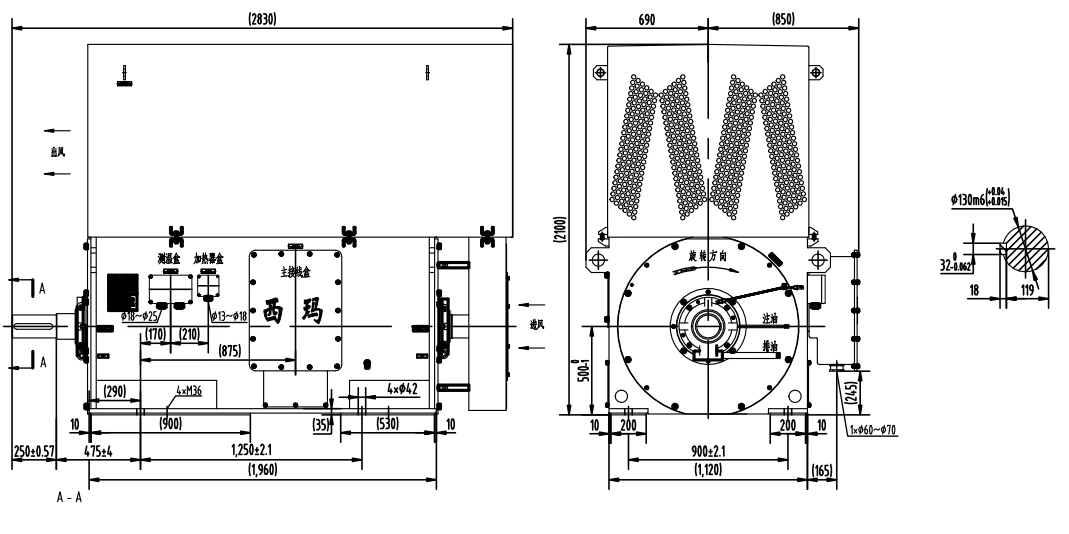

outline dimension of y connection 3 phase motor

Motor Parameters

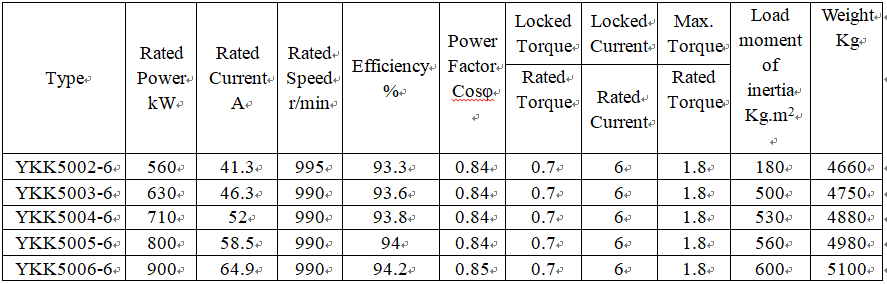

technical data of y connection 3 phase motor

Applications

Cement

Power Station

Water conservation

Steel

CHOOSE AIMIN, CHOOSE QUALITY!
