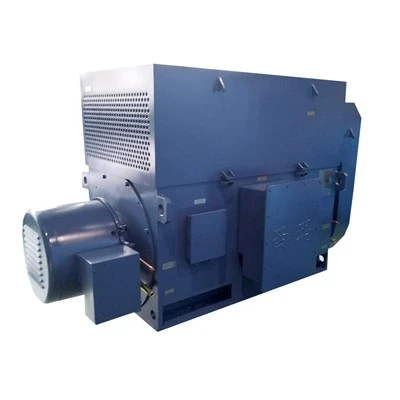

YRKK 630-8GTH 3 Phase Wound Induction Motor 1000kW 10000V

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of yrkk 630-8gth 3 phase wound induction motor 1000kw 10000v in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Title:

YRKK  Three Phase Asychronous Motor

Brief Introduction

The AIMIN YRKK series represents a premium line of high-voltage, phase wound induction motor engineered explicitly for heavy-duty industrial applications, setting a benchmark for reliability, efficiency, and performance in demanding operational environments. Spanning a broad power range with frame sizes up to 630 mm, these motors are tailored to drive high-inertia and heavy-start loads such as crushers, ball mills, large pumps, and rolling mill equipment-scenarios where stable torque output and precise speed regulation are non-negotiable.

At the core of the YRKK series lies its advanced wound-rotor design, equipped with slip rings that enable external resistance adjustment. This configuration delivers exceptional starting torque while ensuring smooth, stepless speed regulation, eliminating the shock loads that often plague standard motors during startup and extending the service life of both the motor and connected machinery. The series boasts impressive energy efficiency, with ratings reaching up to 93.5%, translating to substantial long-term energy savings for continuous S1 duty cycle operations.

Constructed for durability, YRKK phase wound induction motor features F-class (155°C) insulation systems and robust bearing assemblies, ensuring reliable performance even at altitudes up to 2,300 meters and ambient temperatures ranging from -15°C to 40°C. The IC611 air-to-air cooling system guarantees efficient heat dissipation under full-load conditions, while the IP55 protection rating provides superior resistance to dust ingress and low-pressure water jets, making phase wound induction motor suitable for harsh industrial settings.

Designed with versatility in mind, the series adopts the IM B3 horizontal foot-mounted installation standard, compatible with most industrial setups. Manufactured by AIMIN Motor -a trusted leader in industrial motor technology-the YRKK series combines precision engineering, rugged construction, and comprehensive technical support, making it the preferred choice for critical industrial processes that demand uncompromising reliability and performance.

Main Technical Parameters

Why choose AIMIN Brand YRKK series of Motor?

The AIMIN YRKK series stands out for its high efficiency (up to 93.5%), robust wound-rotor design with high starting torque and smooth speed regulation. Boasting IP55 protection, IC611 cooling and F-class insulation, it delivers reliable, continuous performance in harsh industrial environments, backed by AIMIN's proven quality.

Production Details

Frame

• Box structure frame, easy for maintaining and installation

• Flexible for special installation dimensions

• Customizable outlook and dimensions

---

Stator

• 99.9% pure copper winding for stator to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the windings are fitted in by handwork to ensure all slots are full and avoid any possible winding flaw.

---

Rotor

• Aluminum casting rotor with high quality silicon steel rotor core to assure induction efficiency

• Copper bar rotor is available for YKK motor

• Well and precisely machined shafts with good capacity of strength and toughness

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

Cement

Power Station

Water

Mining

CHOOSE AIMIN, CHOOSE QUALITY!
