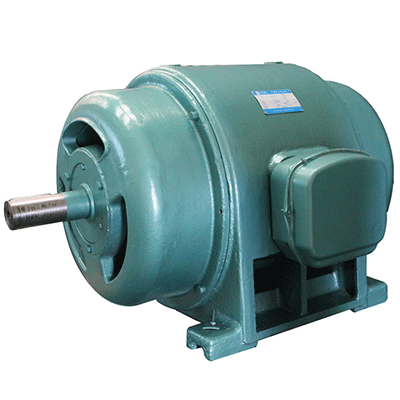

YJTKS4501 VVVF AC Squirrel Cage Induction Motor 450kW

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of yjtks4501 vvvf ac squirrel cage induction motor 450kw in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Title:

YJTKS4501 VVVF three-phase Asynchronous Motor

Brief Introduction

Designed by Xi'an AIMIN Motor -a trusted leader in industrial electromechanical solutions-the YJTKS4501-6XJ is a high-power AC squirrel cage induction motor built to tackle the most rigorous industrial demands. With a 450 kW rating and 990 r/min synchronous speed, it delivers a formidable 4297 N·m of torque, providing the muscle needed for heavy, non-stop operations while maintaining exceptional efficiency.

Standout Attributes

Industry-Leading Efficiency: Boasting a 94.5% efficiency rating and 0.88 power factor, this AC squirrel cage induction motor minimizes energy consumption, directly reducing operational expenses and supporting sustainability targets for industrial facilities.

Dynamic Speed Adaptability: The 5–50 Hz frequency range offers precise, stepless speed control, letting operators fine-tune performance to match variable load conditions and maximize process efficiency.

Built for Harsh Environments: With an IP54 ingress protection rating and IC 86W cooling system, it resists dust, water spray, and ambient temperatures up to 40°C. F-class (155°C) insulation and heavy-duty dual bearings (NU228ECM/6226/C3) ensure long-term reliability and minimal maintenance, even under extreme stress.

Ideal Use Cases

This AC squirrel cage induction motor is the workhorse behind critical operations in mining, cement manufacturing, water treatment, and metallurgy, driving large pumps, fans, compressors, and conveyor systems. Its S1 continuous duty cycle and stable torque output make it a go-to choice for applications where downtime is not an option.

Main Technical Parameters

Why choose AIMIN Brand YJTKS series of Motor?

The YJTKS4501-6XJ stands out for its unbeatable combination of ruggedness and smart engineering. Its IM B3 mounting design and optimized 3520 kg weight streamline installation, while compliance with global standards ensures seamless integration into international projects. For businesses that demand a motor that delivers both power and precision, this is the definitive solution for modern industrial challenges.

Production Details

Frame

• Box structure frame, easy for maintaining and installation

• Flexible for special installation dimensions

• Customizable outlook and dimensions

---

Stator

• 99.9% pure copper winding for stator to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the windings are fitted in by handwork to ensure all slots are full and avoid any possible winding flaw.

---

Rotor

• Aluminum casting rotor with high quality silicon steel rotor core to assure induction efficiency

• Copper bar rotor is available for YKK motor

• Well and precisely machined shafts with good capacity of strength and toughness

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

Cement

Power Station

Water

Mining

CHOOSE AIMIN, CHOOSE QUALITY!
