Induction Motor Variable Speed Control

Name: China Customized Induction Motor Variable Speed Control Manufacturers Suppliers Factory - Low Price - AIMIN
Brand: AIMIN MOTOR
SKU: 259941593

This series of induction motor variable speed control is a new generation product based on the company's long-term stable high-voltage three-phase asynchronous motor’s experience of design and manufacturing, combined with the latest international standards. This series of high and low voltage three-phase asynchronous motor has many advantages, such as compact structure, light weight, high efficiency, energy saving, low noise, low vibration, high reliability, long service life, easy installation and maintenance, etc. The motors can operate when ambient temperature is -15℃~+40℃; the altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).

Send Inquiry

Description

Technical Parameters

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of induction motor variable speed control in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

For AIMIN induction motor variable speed control, the design of class B temperature rise limitation is fully applied. For example, in the production line of a large chemical enterprise, the temperature rise of induction motor variable speed control we supplied was always controlled below 80℃ under long-time high load operation, ensuring the safe and stable operation of the equipment.

In this chemical company's application, our induction motor variable speed control not only meet the requirements of Class B temperature rise limit, but also excel in energy efficiency. Through optimized design and material selection, the energy consumption of our motors was reduced by 15% during operation, saving the customer significant energy costs.

Class B temperature rise limit for induction motor variable speed control is an important indicator to ensure safe and reliable operation of motors. Through rational design and material selection, our induction motor variable speed control meets the Class B temperature rise limit while demonstrating excellent performance and efficient energy consumption. In the future, AIMIN Motor will continue to devote itself to the technological innovation of induction motor variable speed control and provide customers with better products and services.

Main Technical Parameters

Frame	H560mm
Power Scope	1120kW~1400kW
Voltage	6kV
Frequency	50Hz, 60Hz
Number of Poles	6P
Speed	990rpm
Cooling Mechod	IC611
Protection Grade	IP55
Insulation Class	F(155℃)
Duty	S1
Mounting Type	IM B3

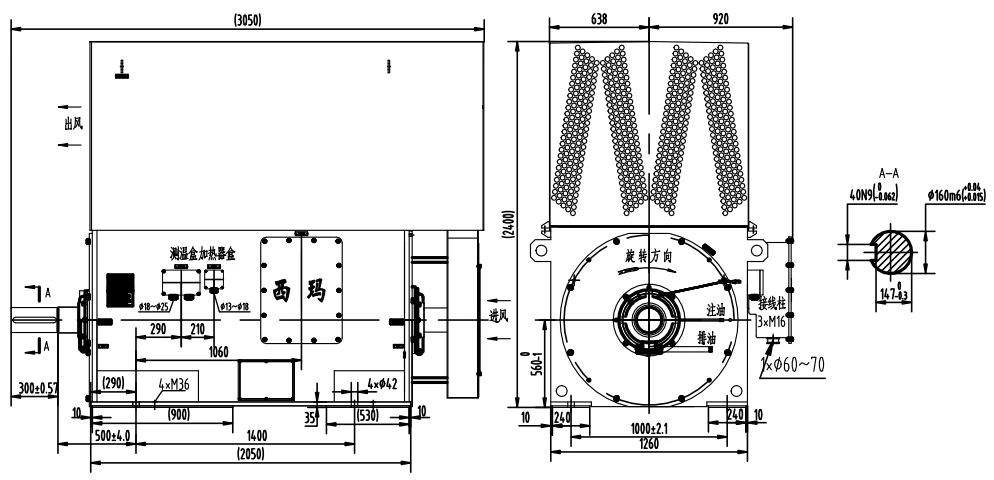

Outline Dimensions

outline dimension of induction motor variable speed control

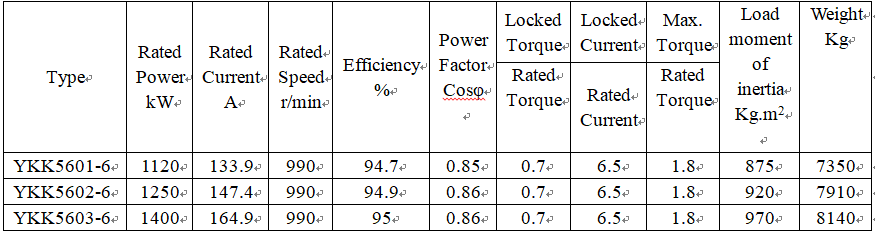

Motor Parameters

technical data of induction motor variable speed control

Applications

Cement

Power Station

Water conservation

Steel

CHOOSE AIMIN, CHOOSE QUALITY!
