IC611 Motor

This series of IC611 motor is a new generation product based on the company's long-term stable high-voltage three-phase asynchronous motor’s experience of design and manufacturing, combined with the latest international standards. This series of high and low voltage three-phase asynchronous motor has many advantages, such as compact structure, light weight, high efficiency, energy saving, low noise, low vibration, high reliability, long service life, easy installation and maintenance, etc. The motors can operate when ambient temperature is -15℃~+40℃; the altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).

Send Inquiry

Description

Technical Parameters

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of ic611 motor in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

In modern industry, IC611 motor is an important power source to drive various mechanical equipment. In particular, IC611 motor is widely used in various industrial fields due to their high efficiency, reliability and simple maintenance. This article will focus on the product characteristics, application areas and advantages of star-connected IC611 motor.

IC611 motor is a kind of electric motor connected to the power supply through a star-shaped connection, which is usually used in applications requiring high voltage and high power. Its working principle is based on electromagnetic induction, where the rotor of the motor rotates in a rotating magnetic field generated by the stator, thus realizing the output of mechanical energy.

The design of this type of motor enables it to operate stably at high voltages and is suitable for a wide range of industrial equipment such as pumps, fans, compressors and conveyor belts. The star connection not only improves the starting performance of the motor, but also effectively reduces the starting current and minimizes the impact on the power grid.

IC611 motor is widely used in the following fields:

1. Water pumps: in water treatment, irrigation and water supply systems, electric motors drive water pumps for water transportation and circulation.

2. Fans: In ventilation, air conditioning and industrial exhaust systems, electric motors drive fans for air flow and ventilation.

3. Compressors: in refrigeration, air conditioning and gas transportation systems, electric motors drive compressors for gas compression and transportation.

4. Conveyor belts: In logistics, mining and manufacturing, electric motors drive conveyor belts for material transportation and sorting.

5. Heavy Machinery: In heavy industries such as metallurgy, mining and construction, electric motors drive all kinds of heavy machinery and equipment.

Main Technical Parameters

Frame	H560mm
Power Scope	800kW~1000kW
Voltage	6kV
Frequency	50Hz, 60Hz
Number of Poles	8P
Speed	745rpm
Cooling Mechod	IC611
Protection Grade	IP55
Insulation Class	F(155℃)
Duty	S1
Mounting Type	IM B3

Outline Dimensions

outline dimension of ic611 motor

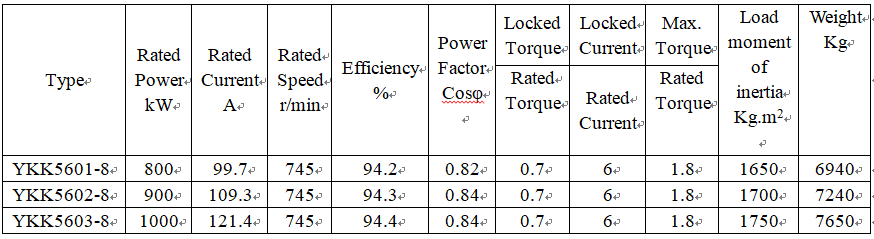

Motor Parameters

technical data of ic611 motor

Applications

Cement

Power Station

Water conservation

Steel
