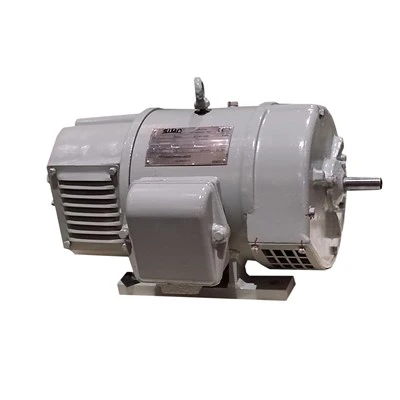

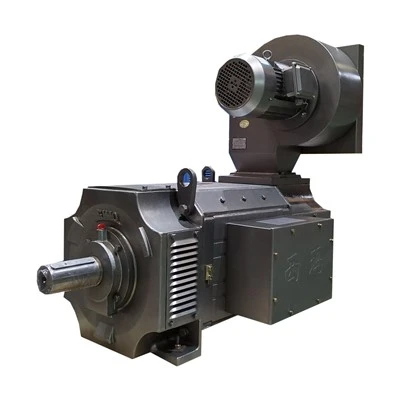

Motor DC 220

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of motor dc 220 in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

The working principle of a motor DC 220 is divided into a DC motor and a DC generator.

A DC motor is an electromagnetic conversion device that converts the electrical energy of the power supply into mechanical energy output from the shaft. The stator excitation winding is introduced into the DC excitation current, which generates an excitation magnetic field.When the armature introduces direct current from the outside world, it is passed through the brush to the commutator, and then through the commutator, the direct current is converted into alternating current and introduced into the armature winding, and the armature current is generated.

Basic DC motor 220v, The DC motor or DC motor, to give it the complete title, is used to generate continuous motion and rotation, and its speed can be easily controlled, making them suitable for use in applications that are speed control, servo control type The most commonly used actuator, and/or need to be positioned.The DC motor consists of two parts, the "stator" is the fixed part, and the "rotor" is the rotating part.The result is that basically three types of DC motors can be used. Brushed motor–This type of motor generates a magnetic field in the winding rotor (rotating part) by causing current to flow through the commutator and carbon brush assembly, so it is called "brushed".

The magnetic field of the stator (the stationary part) is generated by using a wound stator excitation winding or a permanent magnet.Generally, brushed motor DC 220 is cheap, small in size and easy to control. Brushless motor–This kind of motor generates a magnetic field in the rotor by using a permanent magnet attached to it, and commutes electronically.They are usually smaller than conventional brushed DC motors, but the price is higher because they use a "hall effect" switch in the stator to generate the required stator magnetic field rotation sequence, but they have better torque/speed characteristics, higher efficiency and longer service life than the same wire drawing type. Servo motor–This kind of motor is basically a brushed DC motor with some form of position feedback control connected to the rotor shaft.They are connected to and controlled by a PWM-type controller, and are mainly used in position control systems and radio control models.

Main Technical Parameters

Production Details

Frame

• Compact and robust iron casting frame

• Universal IEC and NEMA installation dimensions available

• Customizable outlook and dimensions

---

Armature

• 99.9% pure copper bar for armature to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the copper bars are fitted in by handwork to ensure all slots are full and avoid any possible flaw.

---

Winding:

• All windings are made of pure copper to assure induction efficiency

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

Cement

Power Station

Pump

Sugar

CHOOSE AIMIN, CHOOSE QUALITY!
