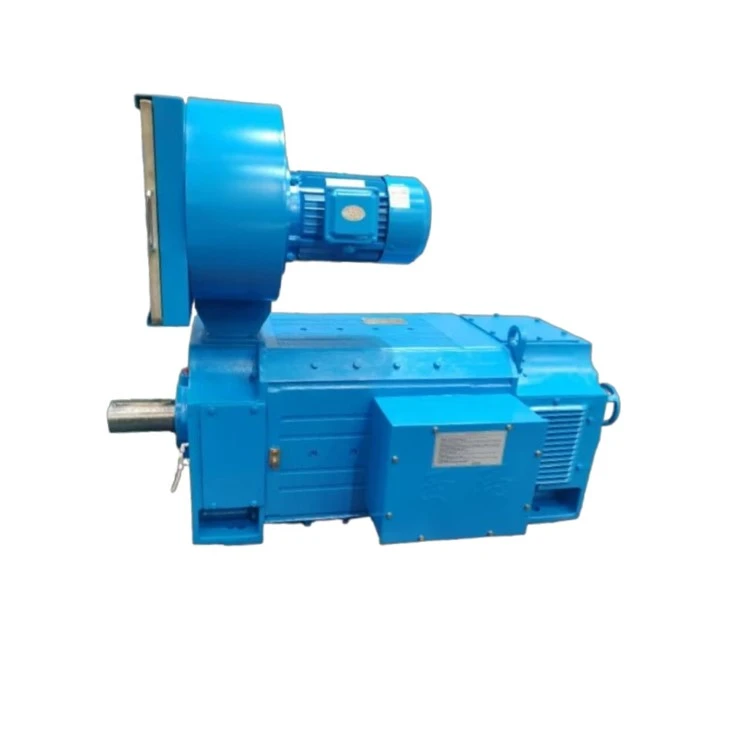

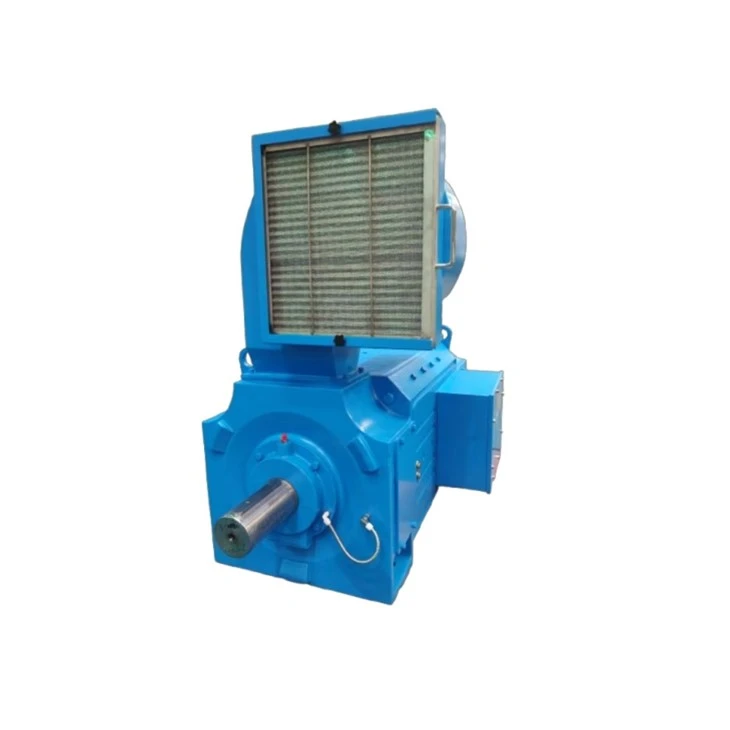

Z4-250-31BQ Direct Current 400 Volt Motor 119 kW

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of z4-250-31bq direct current 400 volt motor 119 kw in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

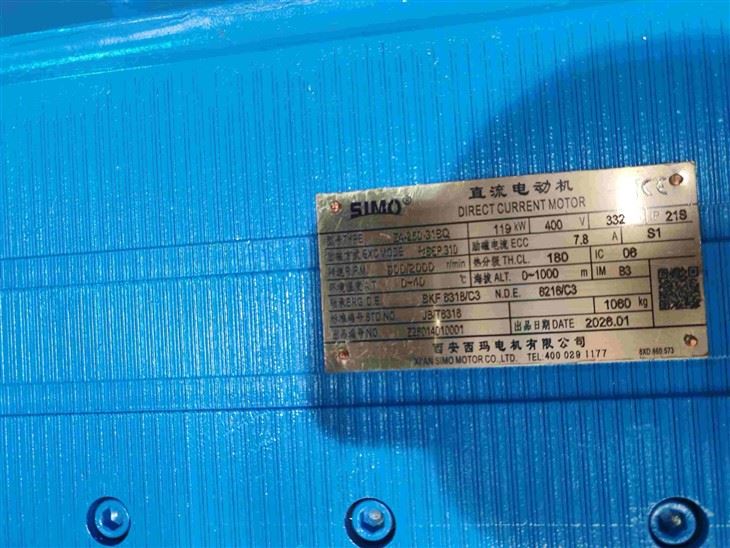

XI'AN AIMIN Z4-250-31BQ high-performance adjustable-speed 400 volt motor is a premium industrial direct current drive product fully compliant with JB/T8318 national standard. As a core member of AIMIN mature Z4 DC motor series, this model integrates advanced electromagnetic design, optimized mechanical structure and reliable manufacturing technology, delivering excellent speed regulation performance and stable continuous power output under complex industrial working conditions. Rated at 119kW power, 400V rated voltage and 332A rated current, it adopts independent separate excitation control system, realizing wide stepless speed regulation from 900r/min to 2000r/min, and maintaining constant torque output across full speed range.

Core Technical Advantages

Different from traditional old-generation DC motors, this upgraded Z4 model 400 volt motor adopts optimized excitation system (SEP.310 excitation mode) with only 7.8A excitation current, greatly reducing excitation loss and improving overall energy efficiency. It adopts Class 180 thermal insulation grade, IP21S protection degree and IC06 self-ventilation cooling structure, adapting to ambient temperature from -40℃ to +40℃ and altitude below 1000m. High-precision SKF imported bearings are equipped on both drive and non-drive ends, with C3 clearance design, significantly improving operation stability, service life and shock resistance. With IM B3 horizontal foot-mounted installation structure and 1060kg optimized overall weight, it achieves perfect balance between structural rigidity and lightweight design.

This model strictly follows AIMIN industrial-grade quality control system, with stable speed regulation precision, strong overload capacity and reliable continuous operation performance under S1 continuous duty system. It effectively solves common pain points of traditional DC motors such as poor speed stability, high energy consumption and short service life.

Application Scenarios

Widely used in metallurgy, mining, printing & packaging, rubber machinery, lifting transportation and other industrial drive scenarios requiring precise speed adjustment and high torque output. As a high-quality adjustable-speed power source, this 400 volt motor provides stable, efficient and durable power support for various industrial automated production lines and heavy-duty equipment.

Main Technical Parameters

Production Details

Frame

• Compact and robust iron casting frame

• Universal IEC  installation dimensions available

• Customizable outlook and dimensions

---

Armature

• 99.9% pure copper bar for armature to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the copper bars are fitted in by handwork to ensure all slots are full and avoid any possible flaw.

---

Winding

• All windings are made of pure copper to assure induction efficiency

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

Cement

Oil gas

Steel

Sugar

CHOOSE AIMIN, CHOOSE QUALITY!
