Universal Synchronous Motor

Universal Synchronous Motor

This series of universal synchronous motor are mainly applied in less dust indoor environment where altitude is not exceed 1000m, ambient temperature not exceed 40℃ which is free from steam, corrosive gases of acid and alkali, and monthly average air humidity ≤90% (If temperature is 25℃).

Description

Technical Parameters

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of universal synchronous motor in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.



Brief Introduction



Universal synchronous motor is a kind of motor widely used in various fields, which has a series of advantages, such as good stability, beautiful appearance, high work efficiency. It is an important part of industrial modern production, and it can play different roles in various industries.

General industrial synchronous motor has a variety of models, can be configured according to different uses of different power, speed, voltage and other parameters. In addition, the motor can also be used in different environments and conditions. For example, in high temperature, humid, explosive environments, general industrial synchronous motors can operate normally. This has provided strong support and help for the development of production and industrialization, improved work efficiency, and reduced the waste of human and material resources.

General industrial synchronous motor maintenance and maintenance is relatively easy, its structure is relatively simple, do not need too much technical personnel input. It only needs to follow the prescribed instructions for use, care and maintenance to ensure its long-term stable operation. In this way, it can not only improve work efficiency and reduce costs, but also extend the life of the motor and improve the use effect. In this way, it not only saves resources, but also protects the environment and promotes the sustainability of industrial development.

In short, the general industrial synchronous motor is a very trustworthy equipment, it has been widely used in a variety of industries, because of its stability, high efficiency and easy maintenance and maintenance characteristics, it can meet different needs, and provide great help and support for the development of production and industrialization. We should actively use the advantages of industrial synchronous motors to promote faster, higher and stronger economic growth.



Main Technical Parameters



Frame

#500-32/2150

Power Scope

500KW

Voltage

6000V, 10000V

Mounting Type

IM7311

Speed

187.5

Cooling Method

IC01

Protection Grade

IP20

Insulation Class

F (155℃)

Duty

S1

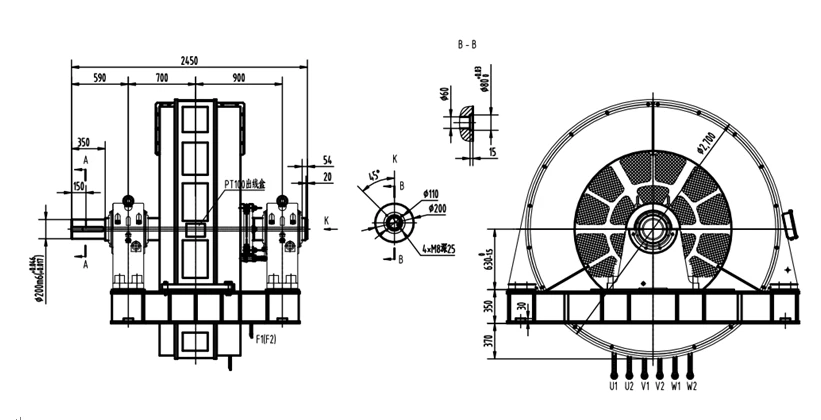

Outline Dimensions



outline dimension of universal synchronous motor

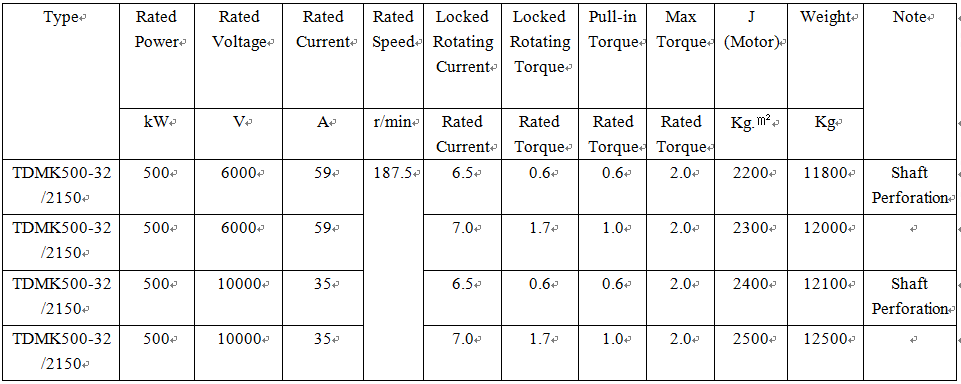

Motor Parameters



technical parameters of universal synchronous motor





Applications



cement(001)

Cement

power station(001)

Power Station

pump(001)

Pump

sugar(001)

Sugar

product-1-1 CHOOSE AIMIN, CHOOSE QUALITY!
