TDMK500-40/2600 Three-phase Synchronous 500kw Motor

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of tdmk500-40/2600 three-phase synchronous 500kw motor in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

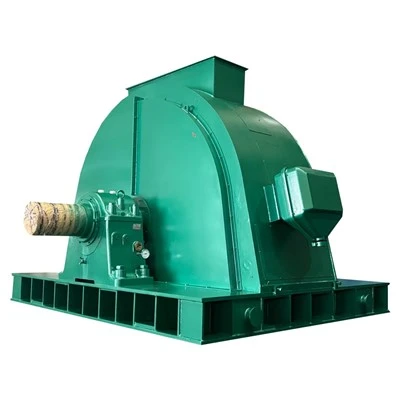

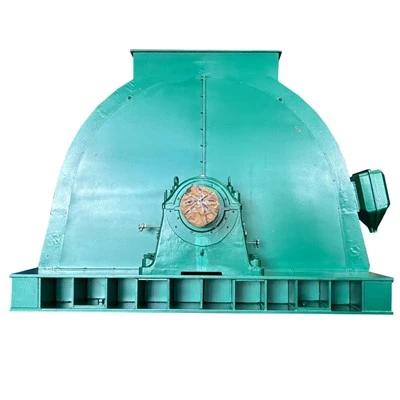

Fabricated by Xi'an AIMIN Motor Co., Ltd., the TDMK series three-phase synchronous motor constitutes a sophisticated, heavy-duty prime mover engineered for high-load industrial transmission. The 500kw motor model TDMK500-40/2600 displayed on the nameplate epitomizes the flagship specification of this product lineage, meticulously crafted to sustain consistent, energy-efficient continuous-duty operation across mining, metallurgy, cement manufacturing, chemical processing and power generation sectors.

This apparatus incorporates a 10kV high-tension stator framework with a nominal power rating of 500kW and a synchronous rotational velocity of 150rpm under 50Hz mains frequency. Its preeminent competitive edge lies in a leading power factor of 0.9, which proficiently compensates reactive power within industrial power grids, curtails transformer energy dissipation and diminishes corporate operational electricity overhead-an unparalleled merit absent from conventional asynchronous motors. The stator implements star (Y) winding connection with a rated stator amperage of 36.2A, complemented by an autonomous excitation loop boasting 90.4V excitation voltage and 193A nominal excitation current, delivering stabilized excitation performance and robust immunity against grid voltage perturbations. As an industrial-grade 500kw motor, it integrates premium Class 155 thermal insulation composite, which endures prolonged high-temperature functioning and substantially decelerates insulation material degradation.

To guarantee enduring operational dependability, the unit attains an IP23 ingress protection classification alongside an IC01 open natural ventilation cooling architecture, facilitating passive air convection heat evacuation with streamlined mechanical configuration and negligible maintenance outlay. It complies with the S1 uninterrupted duty cycle criterion, enabling non-stop 24/7 year-round operation, rendering it optimally compatible with large-scale ball mills, rod mills, heavy compressors and industrial blowers. The IM7311 horizontal mounting configuration caters to high-load stationary installation, furnished with a reinforced cast iron bedplate and heavy-duty bearing assemblies to mitigate severe mechanical vibration incurred during startup and full-capacity running conditions.

Stringent quality assurance protocols permeate every fabrication stage. This 500kW variant boasts a gross mass of 13,730 kilograms, adopting thickened electromagnetic silicon steel laminations and an oversized rotor assembly to augment structural stiffness and mechanical resilience. It sustains flawless performance within an ambient thermal spectrum of 0℃ to 40℃ and retains full nominal output at elevations up to 1000 meters without power derating. Every unit undergoes exhaustive pre-delivery factory calibration and performance auditing, equipped with a unique identification serial number to facilitate full traceability of production batches and quality inspection archives. All merchandise acquires CE accreditation, adhering to stringent international electrical safety directives for cross-border commercial distribution worldwide.

In juxtaposition with rival synchronous motor counterparts, the AIMIN TDMK series strikes an optimal equilibrium between superior energy conversion efficiency and mechanical ruggedness, with an 88.6% efficiency index drastically mitigating power expenditure during prolonged continuous operation. The brand furnishes comprehensive full-lifecycle aftermarket amenities encompassing technical consultancy, OEM spare parts provision and on-site malfunction rectification via its dedicated official service hotline. For industrial stakeholders prioritizing power grid harmonic mitigation, minimized recurring operational expenditure and extended equipment service longevity, this heavy-duty 500kw motor manufactured by AIMIN stands as a cost-efficient, fail-safe driving core for large-capacity industrial production workflows.

Main Technical Parameters

Production Details

Frame

• Box structure frame, easy for maintaining and installation

• Flexible dimensions

• Customizable outlook

---

Stator

• 99.9% pure copper winding ensures the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the windings are fitted in by handwork to ensure all slots are full and avoid any possible winding flaw.

---

Rotor

• Aluminum casting rotor with high quality silicon steel rotor core to assure induction efficiency

• Copper bar rotor is available for YJTKK motor

• Pprecisely machined shafts with good capacity of  toughness

---

Testing

• All motors must pass the testing before painting and packaging

• We regularly test existing and new products to ensure quality.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

TDMK Motor is the widely used in many general industries, such as blowers, pumps, crushers, cutting machines, and many other heavy machines. For more application details, contact us.

Cement

Power Station

Water conservation

Steel
