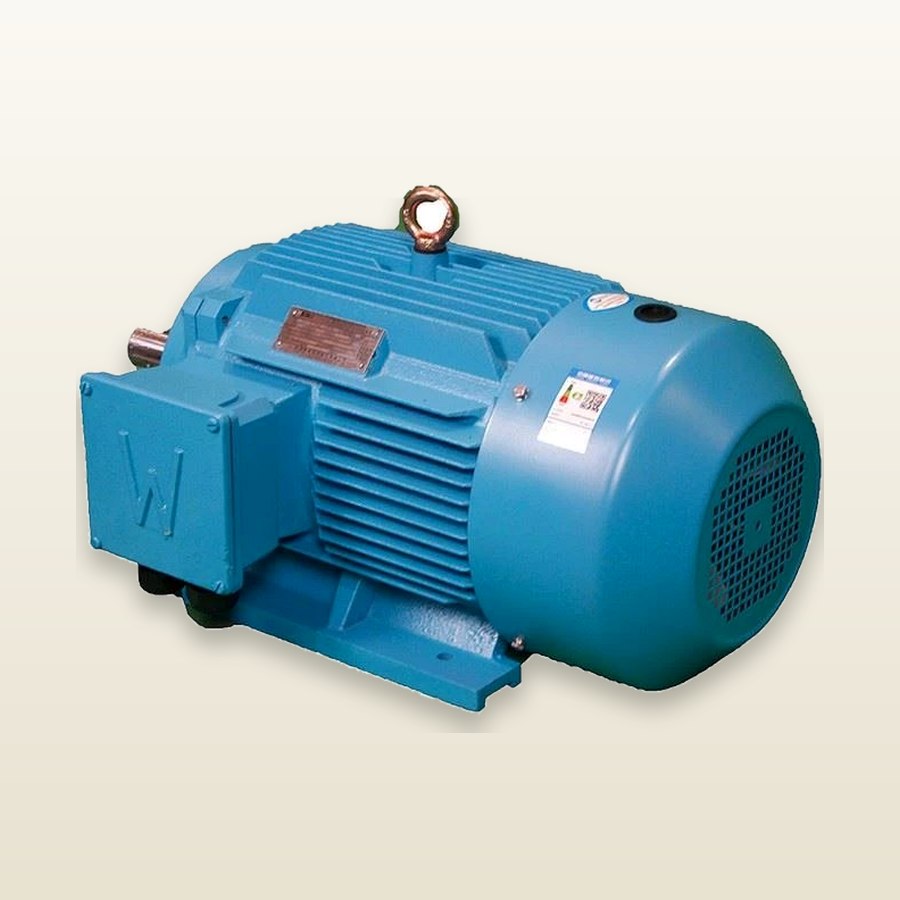

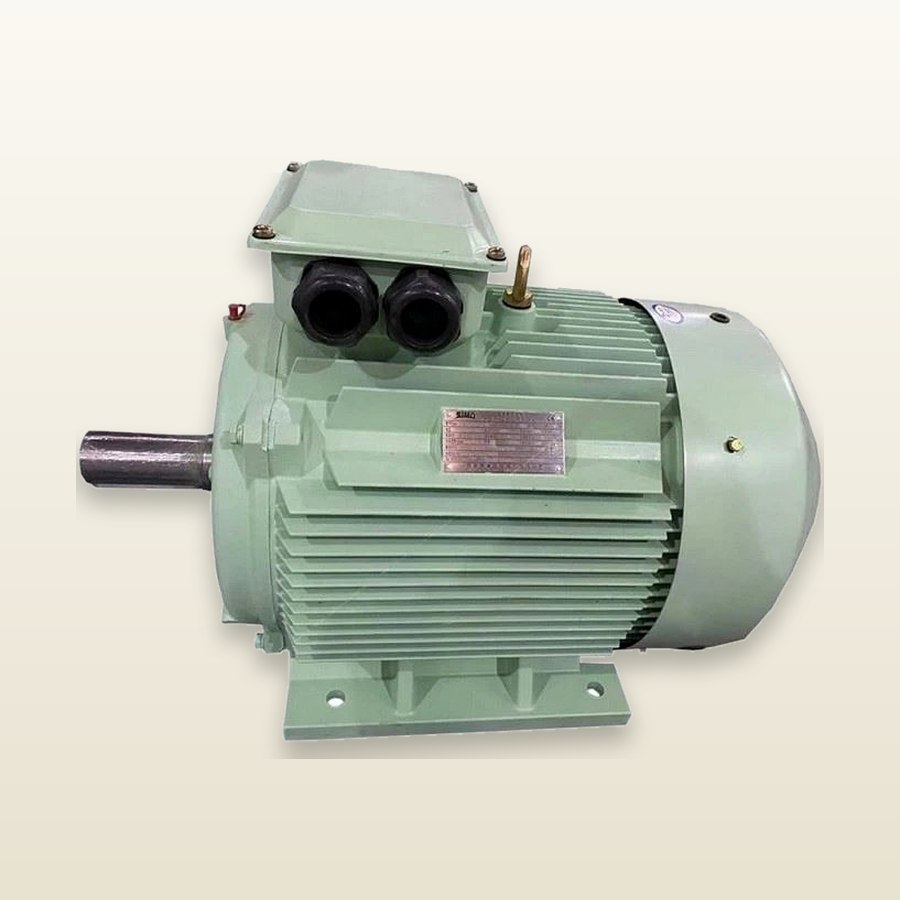

YE3 Series High-Efficiency Three-Phase Asynchronous Motor
YE3 系列高效三相异步电机
| Frame size | H80–H450 |
|---|---|
| Power | 0.37–1,000 kW |
| Voltage | 380 / 400 / 415 / 460 / 490 / 660 / 690 V |
| Frequency | 50 / 60 Hz |
| Poles | 2 / 4 / 6 / 8 / 10 / 12 |
| Speed | 3,000 / 1,500 / 1,000 / 750 / 600 / 500 rpm |
| Cooling | IC411 |
| Protection class | IP55 |
| Insulation class | F (155 °C) / H (180 °C) |
| Duty | S1 / S4 / S5 / S6 / S9 |
| Mounting | B3 / B5 / B35 / V1 |
| Efficiency | IE3 |
| Standard | IEC |
The YE3 is part of AIMIN Electrics' Low-Voltage AC Motors range. Key data: Frame size H80–H450; Power 0.37–1,000 kW; Voltage 380 / 400 / 415 / 460 / 490 / 660 / 690 V; Frequency 50 / 60 Hz. AIMIN Electrics （爱民电器） is an industrial motor manufacturer based in Baoding, Hebei, China, founded in 1995, serving power, mining, metallurgy, cement, chemical and water projects worldwide. Contact us for the current price, complete datasheet and delivery schedule for your market.
