YR 315M - 8 Three-phase Asynchronous Motor Ip23

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of yr 315m - 8 three-phase asynchronous motor ip23 in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

Product Overview

Manufactured by Xi'an AIMIN Motor Co.,Ltd., a top domestic motor manufacturer with CE certification, the YR315M1-8 is an 8-pole wound rotor three-phase asynchronous motor ip23 specially designed for heavy-duty industrial operating conditions. Following the national standard JB/T 5269, this motor adopts a classic slip-ring wound rotor structure, which is fundamentally different from ordinary squirrel-cage asynchronous motors. It delivers outstanding starting performance, adjustable starting torque and smooth speed regulation capability, perfectly meeting the harsh load demands of mining, metallurgy, lifting, conveyors and large mechanical equipment. With rated power of 110kW, rated speed of 740r/min and stable 380V stator power supply, it becomes an ideal power source for high-inertia heavy-load starting occasions.

Core Technical Specifications & Advantages

This motor ip23 adopts delta connection for stator winding and star connection for rotor winding, with stator rated voltage 380V, stator rated current 229A, rotor rated voltage 326V and rotor rated current 204A. It reaches a power factor of 0.79, Class 130 thermal insulation grade, IP23 protection grade, IC01 self-ventilation cooling mode and S1 continuous working duty. Equipped with premium bearings NU319 (drive end) & 6319/C3 (non-drive end), it ensures ultra-low vibration, stable operation and long service life. B3 horizontal foot-mounted installation structure makes it easy to install and maintain on various industrial equipment.

Distinguished from conventional squirrel-cage motors, its unique wound rotor design supports external resistance starting, which greatly reduces starting current impact on power grid and provides high starting torque under heavy loads. It works properly under 40℃ ambient temperature and ≤1000m altitude, with strict quality control and CE compliance. The whole machine weighs 1362kg, with solid structure, excellent overload resistance and reliable operation stability.

Application Scenarios

Widely applied in belt conveyors, crushers, rolling mills, hoisting machinery, fans and pumps, this AIMIN YR series motor ip23​​​​​​​ provides stable and efficient power output for various industrial production lines, and is highly recognized by global industrial customers for its reliable quality and professional performance.

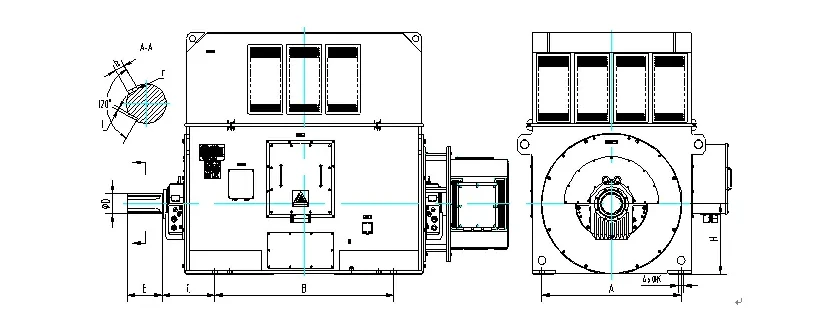

Main Technical Parameters

Production Details

Frame

• Box structure frame, easy for maintaining and installation

• Flexible for special installation dimensions

• Customizable outlook and dimensions

---

Stator

• 99.9% pure copper winding for stator to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the windings are fitted in by handwork to ensure all slots are full and avoid any possible winding flaw.

---

Rotor

• Aluminum casting rotor with high quality silicon steel rotor core to assure induction efficiency

• Copper bar rotor is available for YKK motor

• Well and precisely machined shafts with good capacity of strength and toughness

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

Cement

Power Station

Water

Mining
