YVF315S-2A VVVF Three-phase Asynchronous AC Motor 3000 Rpm110kw

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of yvf315s-2a vvvf three-phase asynchronous ac motor 3000 rpm110kw in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

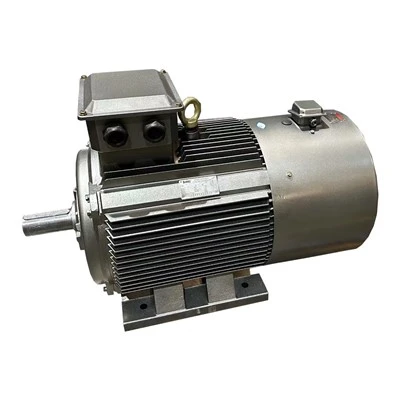

The AIMIN YVF315S-2A ac motor 3000 rpm is a high-performance VVVF three-phase asynchronous motor manufactured by Xi'an AIMIN Motor Co., Ltd., designed to deliver reliable, efficient power for variable-speed industrial applications. Built on the robust technical heritage of AIMIN, a leading Chinese motor manufacturer, this motor combines precision engineering, durable construction, and optimized performance to meet the demands of modern automation and energy-saving systems.

At the core of its design, the YVF315S-2A ac motor 3000 rpm operates as a variable frequency drive (VFD)-compatible induction motor, engineered to deliver consistent power across a wide speed range. With a rated power output of 110 kW, it is configured for a rated voltage of 380V and a rated current of 197A, operating at 50Hz with a base speed of 2975 r/min. The motor is designed for continuous duty (S1), ensuring stable, uninterrupted operation in demanding industrial environments. Its torque rating of 350 N·m provides ample power for heavy-load applications, while its wide frequency compatibility (3–50Hz for standard operation, extendable to 60Hz for variable speed scenarios) allows for flexible speed adjustment without compromising performance.

Constructed for durability and longevity, the YVF315S-2A features premium-grade components throughout. It uses 6317/C3 bearings on both the drive end (D.E.) and non-drive end (N.D.E.), ensuring smooth, low-friction rotation even under high loads. The motor is wound in a delta (△) connection, optimized for 380V power systems, and protected by an IP55 enclosure rating, which safeguards against dust ingress and water splashes-making it suitable for both indoor and outdoor industrial settings. With a thermal class of 155 (F-class insulation) and IC416 cooling (independent forced ventilation), the motor maintains stable operating temperatures even during extended variable-speed runs, preventing overheating and ensuring consistent performance.

Engineered for versatility, the YVF315S-2A is ideal for applications requiring precise speed control and energy efficiency, including pumps, fans, compressors, machine tools, metallurgical equipment, and textile machinery. Its variable frequency capability allows for stepless speed regulation, enabling users to match motor output to load requirements and reduce energy consumption significantly compared to fixed-speed motors. The motor complies with JB/T7118 standards and carries CE certification, meeting international quality and safety benchmarks.

Backed by AIMIN's decades of manufacturing expertise, the YVF315S-2A ac motor 3000 rpm combines reliable performance, low maintenance requirements, and robust construction to deliver exceptional value. With its optimized design, high-quality components, and flexible operation, this motor is a trusted solution for industrial applications demanding efficiency, durability, and precise control.

Main Technical Parameters

Production Details

Frame

• Compact and robust iron casting frame

• Universal IEC installation dimensions available

• Customizable outlook and dimensions

---

Stator

• 99.9% pure copper winding for stator to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the windings are fitted in by handwork to ensure all slots are full and avoid any winding flaw.

---

Rotor

• Aluminum casting rotor with high quality silicon steel rotor core to assure induction efficiency

• Well and precisely machined shafts with good capacity of strength and toughness

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

Cement

Chemistry

Pump

Water conservation

CHOOSE AIMIN, CHOOSE QUALITY!
