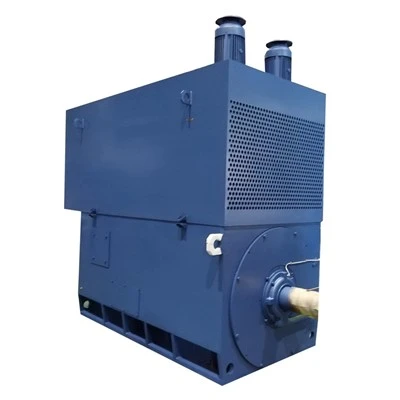

Y Delta Connection Motor

This series of Y delta connection motor is a new generation product based on the company's long-term stable high-voltage three-phase asynchronous motor’s experience of design and manufacturing, combined with the latest international standards. This series of high and low voltage three-phase asynchronous motor has many advantages, such as compact structure, light weight, high efficiency, energy saving, low noise, low vibration, high reliability, long service life, easy installation and maintenance, etc. The motors can operate when ambient temperature is -15℃~+40℃; the altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).

Send Inquiry

Description

Technical Parameters

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of y delta connection motor in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

The operating principle of Y delta connection motor is based on the law of electromagnetic induction. When the three-phase AC current passes through the stator windings, a rotating magnetic field is generated, which in turn induces a current in the rotor and creates a rotating torque. Due to the slip between the rotor and stator, the motor is capable of asynchronous operation.

The water cooling system maintains the motor within the optimum operating temperature range by circulating water to carry away the heat generated inside the motor. The anti-condensation space heater protects the electrical insulation of the motor by heating the space inside the motor and preventing water condensation due to low temperatures.

Y delta connection motor is used in a wide variety of industrial applications, particularly in mining industry. In the mining industry, electric motors are commonly used to drive various mining equipment, such as elevators, crushers and conveyors. High-voltage three-phase asynchronous water-cooled motors are able to operate stably under high loads and harsh environments, ensuring the continuity and safety of mining production.

Main Technical Parameters

Frame	H500mm
Power Scope	250kW~450kW
Voltage	10kV
Frequency	50Hz, 60Hz
Number of Poles	10P
Speed	595rpm
Cooling Mechod	IC611
Protection Grade	IP55
Insulation Class	F(155℃)
Duty	S1
Mounting Type	IM B3

Outline Dimensions

outline dimension of y delta connection motor

Motor Parameters

technical data of y delta connection motor

Applications

Cement

Power Station

Water conservation

Steel
