YJTKS560-4T VVVF 3 phase Asynchronous Motor 10000 V

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of yjtks560-4t vvvf 3 phase asynchronous motor 10000 v in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Title:

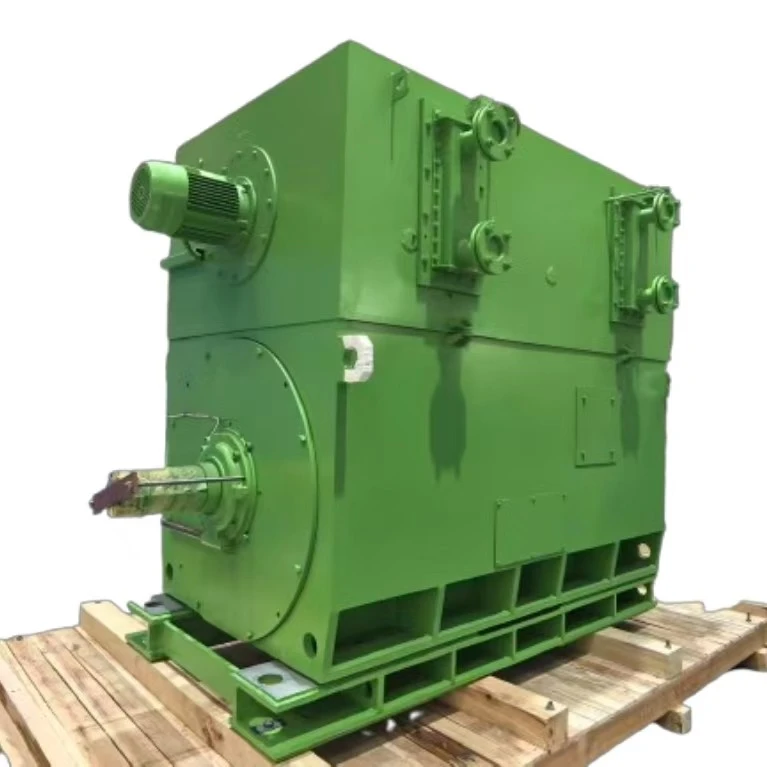

YJTKS560-4T VVVF three-phase Asynchronous Motor

Brief Introduction

The  YJTKS560-4T1 is a high-voltage, variable-frequency three-phase asynchronous motor engineered for heavy-duty industrial applications. Boasting a robust 2300kW power output and 10,000V stator voltage, it delivers reliable performance for demanding systems like large fans, pumps, or compressors in power, metallurgy, and chemical sectors.

Its design prioritizes efficiency and durability: with a 95.4% efficiency rating (energy efficiency class 3) and 1490r/min speed (4-pole configuration), it balances power with operational cost savings. The IC 86W air-water cooling system ensures effective heat dissipation even under continuous S1 duty, while the IP54 protection rating shields internal components from dust and moisture, suiting harsh industrial environments.

Equipped with premium SKF bearings (NU238ECM / 6336/C3), the asynchronous motor guarantees long-term reliability, supported by a rugged cast frame and Y-connection wiring. Weighing 8920kg, it features an IM B3 horizontal mounting design for seamless integration into existing drive systems.

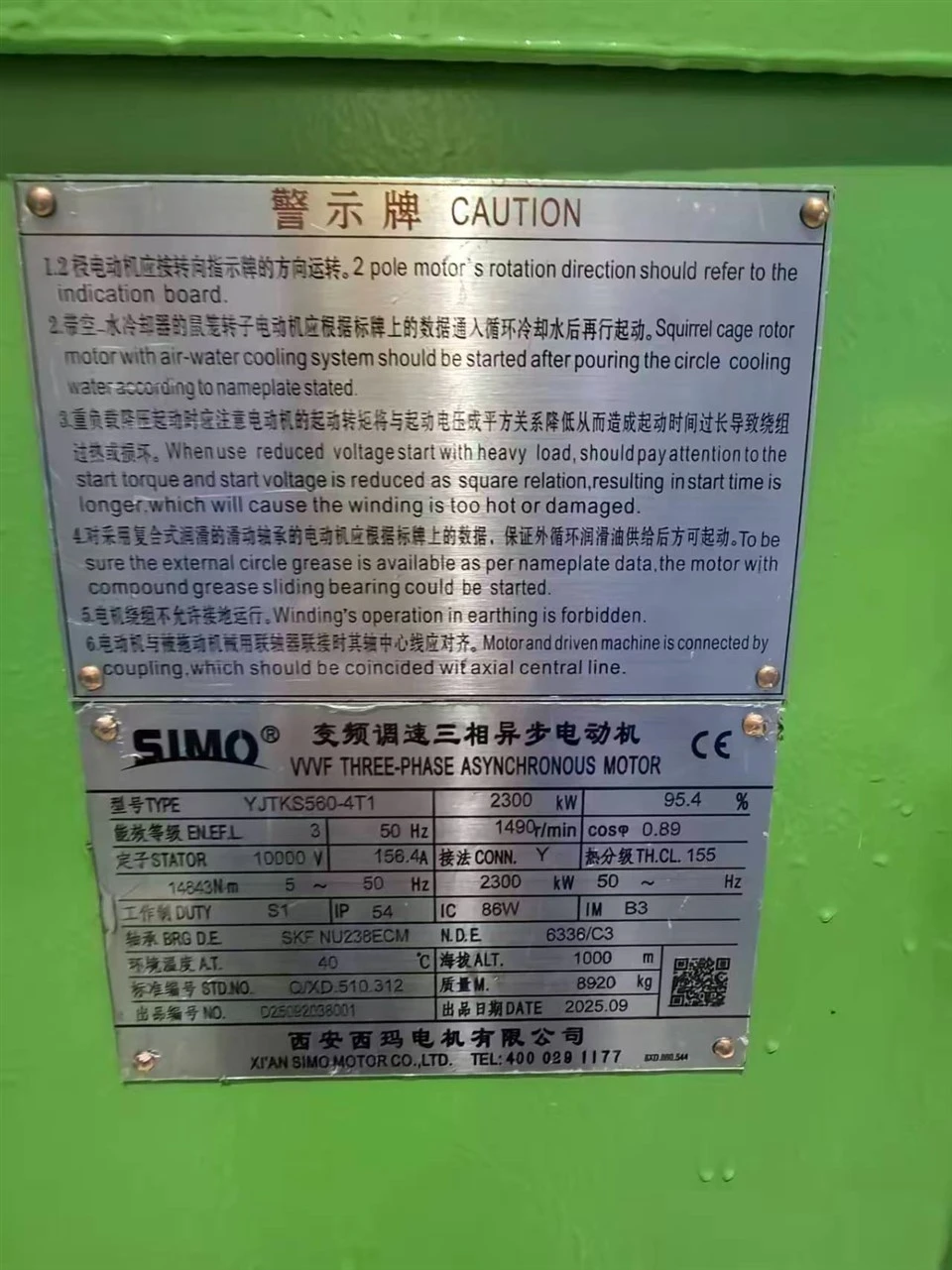

Safety is emphasized via clear operational guidelines: it requires pre-start cooling water circulation (for its air-water cooling system), proper alignment when coupled to driven equipment, and prohibits grounded winding operation. Certified by CE standards, this motor combines AIMIN's engineering expertise with industrial-grade build quality, making it a core power component for large-scale industrial drive setups.

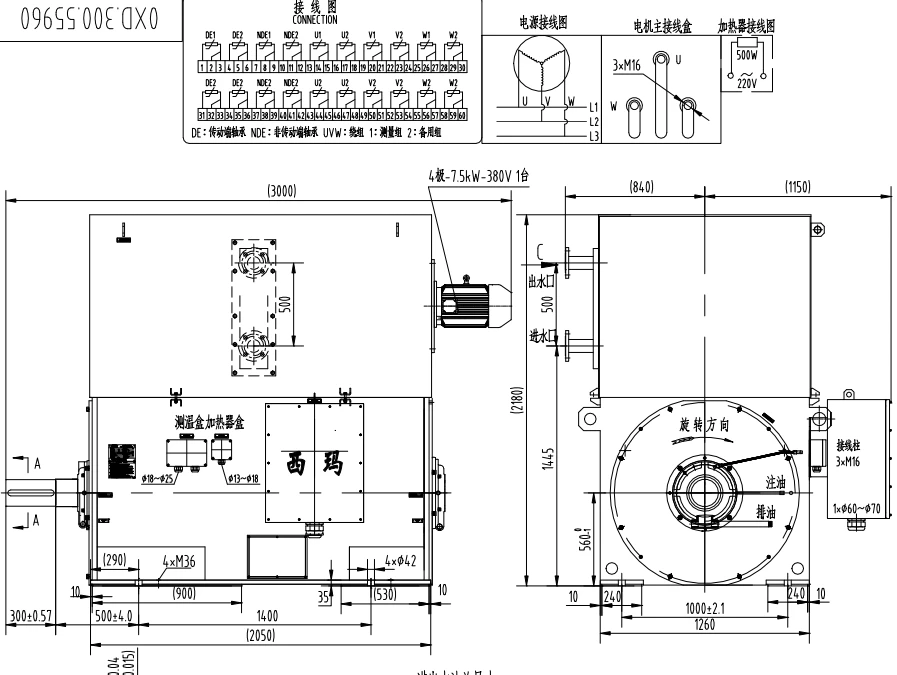

Main Technical Parameters

Why choose AIMIN Brand YJTKS series of Motor?

AIMIN YJTKS series is a high-voltage variable-frequency air-water cooled motor, boasting high efficiency, wide frequency adaptability (30–100 Hz), and robust reliability. With F-class VPI insulation, IP55/IP65 protection, and compact high-power density design, it cuts energy costs by 8–15% and suits heavy industries like steel and chemicals. Certified to IEC/GB standards, it offers easy installation, low maintenance, and global after-sales support, delivering excellent TCO and stable performance.

Production Details

Frame

• Box structure frame, easy for maintaining and installation

• Flexible for special installation dimensions

• Customizable outlook and dimensions

---

Stator

• 99.9% pure copper winding for stator to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the windings are fitted in by handwork to ensure all slots are full and avoid any possible winding flaw.

---

Rotor

• Aluminum casting rotor with high quality silicon steel rotor core to assure induction efficiency

• Copper bar rotor is available for YKK motor

• Well and precisely machined shafts with good capacity of strength and toughness

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

Cement

Power Station

Water

Mining

CHOOSE AIMIN, CHOOSE QUALITY!
