YXKK400-6G 3 Phase 6 Pole Motor 500kW IP54 IC 611

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of yxkk400-6g 3 phase 6 pole motor 500kw ip54 ic 611 in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

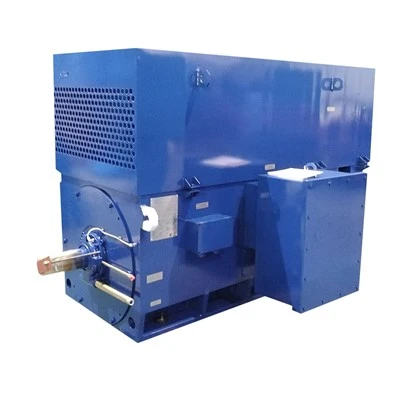

This high‑performance 3 phase 6 pole motor, model YXKK400‑6G, is manufactured by Xi'an AIMIN Motor Co., Ltd, serving as a reliable heavy‑duty three‑phase asynchronous motor tailored for demanding industrial operating conditions. Rated power reaches 500 kW, with rated voltage 10000V, frequency 50Hz, rated speed 990 r/min and efficiency up to 93.8%. Designed with IP54 protection grade and S1 continuous duty, this motor adopts IC611 air‑water cooling structure, which can steadily run under ambient temperature up to 40℃, perfectly matching heavy‑load equipment in cement, sugar refinery, mining, water treatment and other industries.

Built with rigid high‑strength frame structure, the motor is equipped with NU224ECM main bearing and 6224/C3 non‑drive‑end bearing, IM B3 mounting form for floor installation. Its squirrel‑cage rotor delivers stable starting performance. When applying reduced‑voltage starting for heavy‑load scenarios, users shall pay attention to the drop of starting torque caused by voltage reduction to avoid overheating or winding damage. The air‑water cooling system requires smooth circulation of cooling water before commissioning; for sliding‑bearing configurations, external circulating lubricating grease supply must be guaranteed prior to startup. Earthing‑mode winding operation is strictly forbidden, and shaft‑center alignment shall be ensured when connecting with driven machinery via couplings.

As a robust 3 phase 6 pole motor, this YXKK‑series unit complies with IEC international standards and carries CE certification. With power‑saving level 2 energy efficiency, power factor 0.83, stator rated current 37.2A, it maintains excellent comprehensive energy‑saving performance under long‑time continuous operation. The motor weighs 3760 kg, engineered for stable output under harsh site environments such as high altitude. Strict factory tests are implemented throughout production, to eliminate potential defects and extend total service life. It adapts to various tough working sites where high‑power, medium‑speed continuous drive is required.

For large‑scale industrial projects, customers value stability, low failure rate and low lifecycle cost. This 3 phase 6 pole motor offers outstanding mechanical strength and reliable cooling capacity, effectively reducing downtime and maintenance expenditure. Widely applied to drive pumps, fans, compressors and process production lines, it is a trusted high‑voltage asynchronous motor solution for global industrial purchasers. Every unit undergoes complete inspection before delivery, supporting customized technical parameters to satisfy diversified project requirements.

Main Technical Parameters

Production Details

Frame

• Box structure frame, easy for maintaining and installation

• Flexible dimensions

• Customizable outlook

---

Stator

• 99.9% pure copper winding ensures the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the windings are fitted in by handwork to ensure all slots are full and avoid any possible winding flaw.

---

Rotor

• Aluminum casting rotor with high quality silicon steel rotor core to assure induction efficiency

• Copper bar rotor is available for YXKK motor

• Pprecisely machined shafts with good capacity of  toughness

---

Testing

• All motors must pass the testing before painting and packaging

• We regularly test existing and new products to ensure quality.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

YXKK400-6G HV Motor is the widely used in many general industries, such as blowers, pumps, crushers, cutting machines, and many other heavy machines. For more application details, contact us.

Cement

Power Station

Water conservation

Steel
