Y Delta Control Diagram

This series of motor with y and delta control diagram has advantages, such as excellent Flame-proof property, high reliability, compact structure, safe, environment protection, low vibration, low noise, easy to install and maintain. And it can replace YB560~710 series (IC511 tube cooling structure) high voltage Flame-proof three phase asynchronous motor.

Send Inquiry

Description

Technical Parameters

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of y delta control diagram in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

Series motor of Y delta control diagram is widely used. In the petroleum and chemical industry, there are often flammable and explosive gases and liquids, 6KV high voltage explosion-proof three-phase asynchronous motor explosion-proof performance can effectively protect the safe operation of equipment.

Mining and metallurgical industry equipment usually need high power motor to drive, motor electric 1000 rpm can meet the power needs of these industries.

In the water treatment and environmental protection industries, electric motors are used to drive pumps, fans and other equipment, and the high efficiency and stability of motor electric 1000 rpm make them the ideal choice.

In addition to the above industries, motor electric 1000 rpm can also be widely used in construction, transport, food processing and many other fields.

With its high-voltage design, explosion-proof performance, three-phase asynchronous structure, high efficiency and energy saving, and easy maintenance, motor electric 1000 rpm has become an indispensable and important equipment in modern industry. With the continuous development of industrial automation and intelligence, the performance and safety requirements for motors are also increasing. Choosing a suitable high-voltage explosion-proof motor can not only improve production efficiency, but also effectively protect production safety.

In the future development, motor electric 1000 rpm will continue to play its important role, providing strong support for the safe and efficient operation of various industries.

Main Technical Parameters

Frame	H450
No. of Poles	2P, 4P, 6P, 8P
Power Scope	250~710kW
Voltage	6kV
Frequency	50/60Hz
Synchronous Speed	3000rpm, 1500rpm, 1000rpm, 750rpm
Protection Grade	IP54/IP55
Insulation Class	F
Mounting Type	IM B3
Connection	Delta/Y
Mark of Explosion-proof	Exd II B T4 Gb
Cooling Type	IC411
Duty	S1

Outline Dimensions

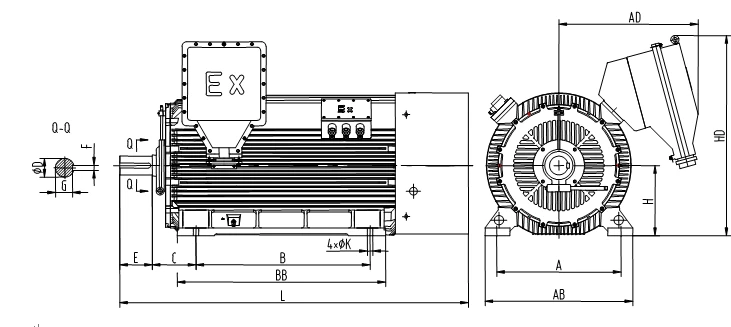

outline dimension of motor electric 1000 rpm

Technical Parameters

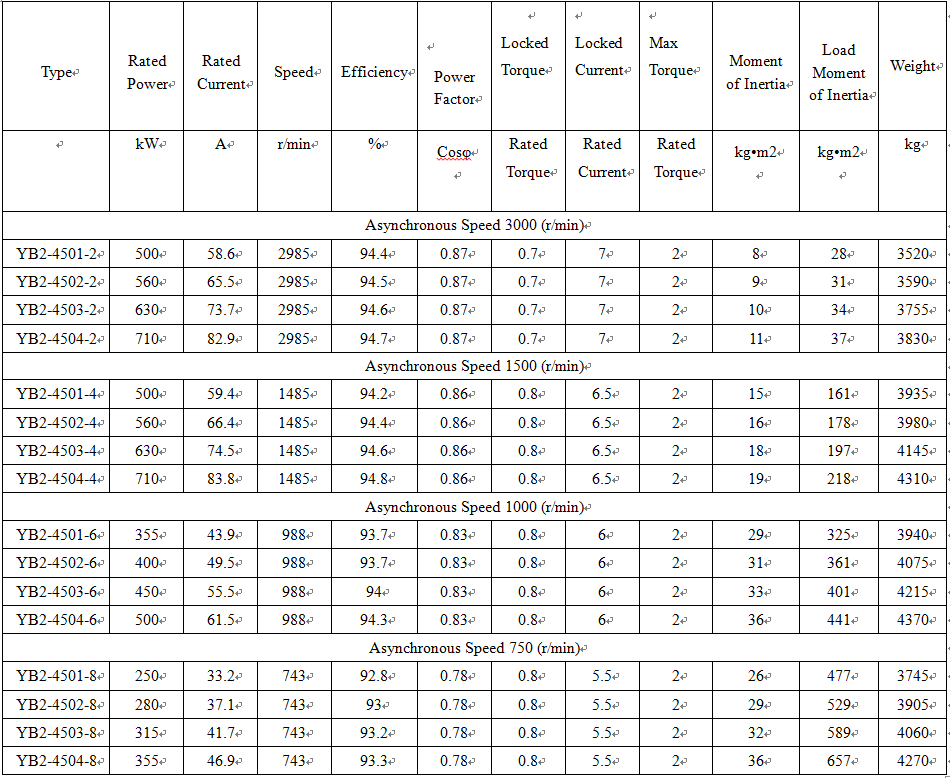

technical data of motor electric 1000 rpm

Blowers, compressors, cutting machines, and many other heavy machines in chemical, power, mining, steel, manufacturing, etc.

Cement

Power Station

Water conservation

Steel

CHOOSE AIMIN, CHOOSE QUALITY!
