IEC Explosion Proof Standard Exd II CT4 Gb

IEC explosion proof standard motor Exd II CT4 Gb has advantages such as excellent Flame-proof property, high efficiency, energy saving, large temperature rise margin, long operation life, good property, low vibration, advanced Flame-proof structure, good starting performance, good-looking appearance, high reliability and no sparking while operating. This series of motor is mainly applied to drive equipments of coal mine, petroleum and gas, petrochemical industry, such as water pump, blower, compressor, conveyor and other machines.

Send Inquiry

Description

Technical Parameters

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of iec explosion proof standard exd ii ct4 gb in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

IEC explosion proof standard motor Exd II CT4 Gb can avoid explosions due to sparks and static electricity. When working in the explosion danger area, because there may be flammable gases, steam and other substances in the environment, it is very easy to cause sparks and static electricity, which will bring great risks to the work. Exd II CT4Gb standard explosion-proof motor adopts advanced explosion-proof technology, which can effectively prevent the occurrence of sparks and static electricity, so as to protect people's life and property safety.

Main Technical Parameters

Frame	H315
No. of Poles	2P, 4P, 6P, 8P, 10P
Power Scope	75~200kW
Voltage	380V/660V
Frequency	50/60Hz
Speed	600rpm, 750rpm, 1000rpm, 1500rpm, 3000rpm
Protection Grade	IP55
Insulation Class	F
Mounting Type	IM B3
Connection	Delta/Y
Mark of Explosion-proof	Exd I Mb, Exd II BT4Gb, Exd II CT4 Gb
Cooling Type	IC411
Efficiency Class	IE3
Duty	S1
Vibration	≤1.8mm/s
Ambient Temperature	-15℃ ～ +40℃
Altitude	≤1000m
Humidity	Average monthly peak relative humidity is 90%

Outline Dimensions

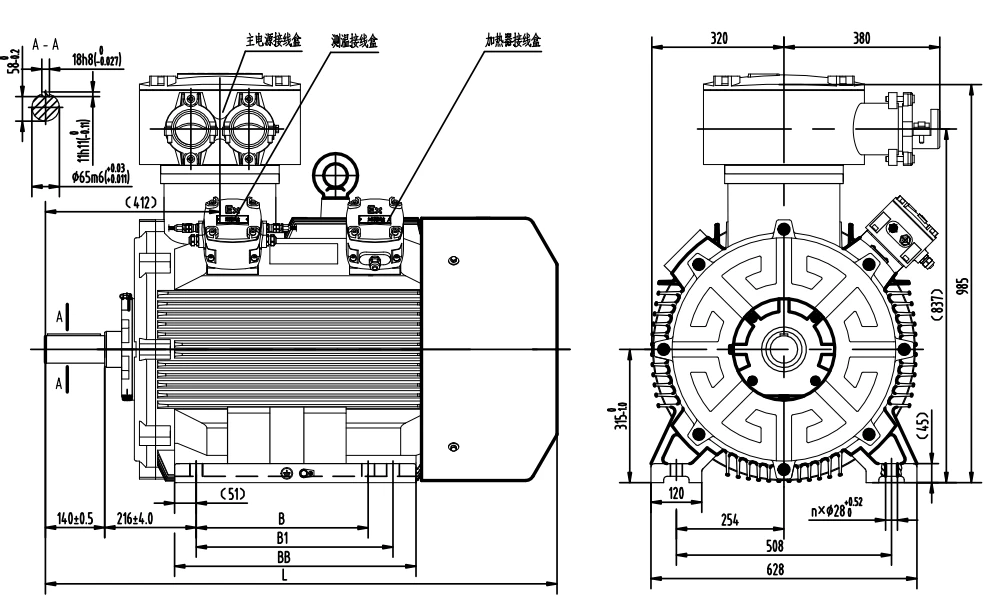

outline dimension of iec explosion proof standard Exd II CT4 Gb

Technical Parameters

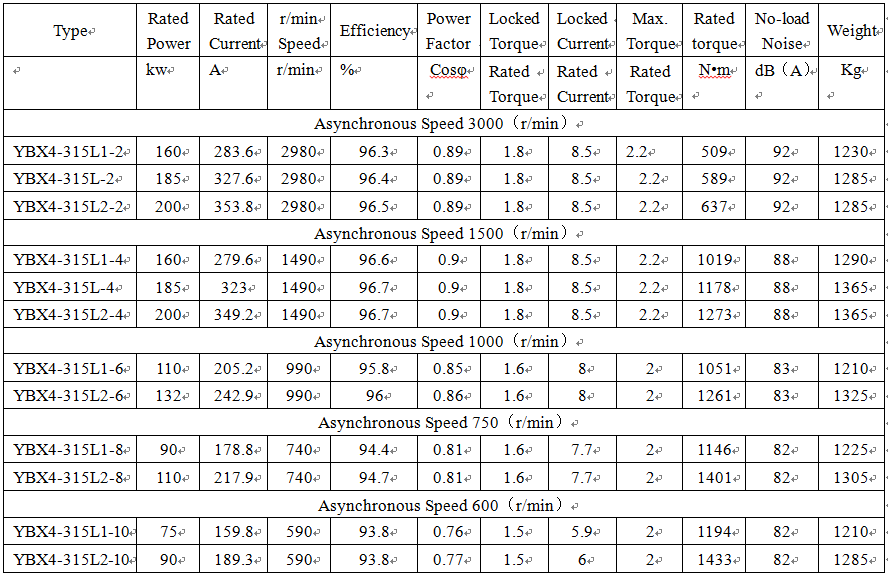

technical data of iec explosion proof standard Exd II CT4 Gb

Blowers, compressors, cutting machines, and many other heavy machines in chemical, power, mining, steel, manufacturing, etc.

Cement

Power Station

Water conservation

Steel
