Variable Speed DC Gear Motor

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of variable speed dc gear motor in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Title:

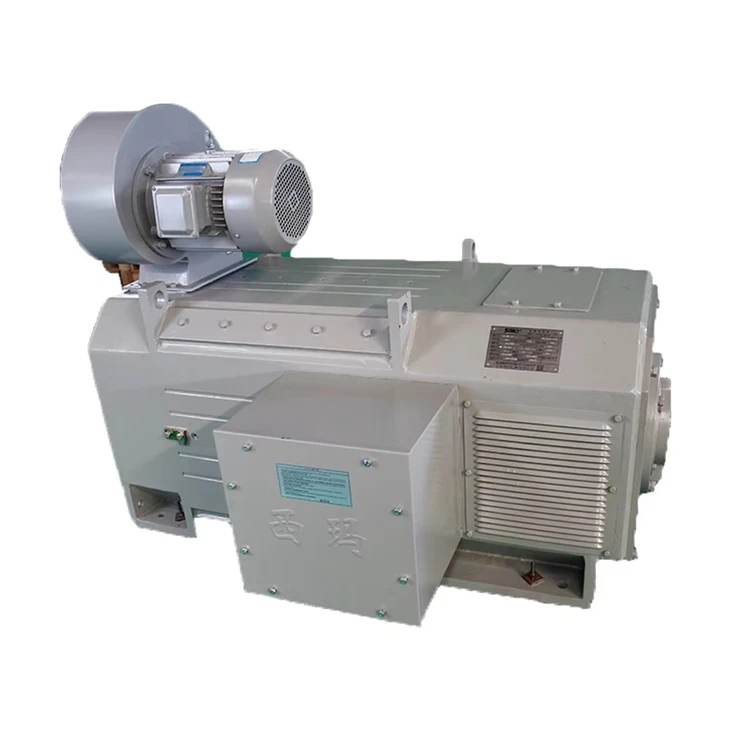

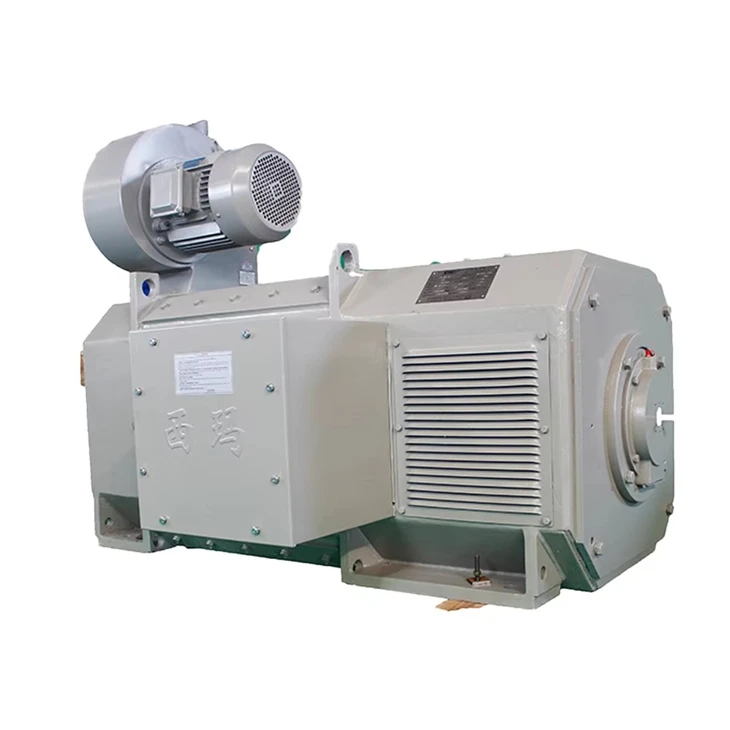

Z4-132-2 Variable Speed DC Gear Motor

Brief Introduction

Engineered for seamless energy conversion, this industrial DC motor Z4-132-2 features optimized armature winding and commutation systems to ensure reliable power transfer between electrical and mechanical domains.

Core Commutation Technologies:

Insulated Commutator Architecture: Mica-isolated copper bars withstand continuous arcing while maintaining dielectric integrity at 200% overload currents.

Slot-Aligned Winding: Precisely positioned lap/simplex windings maximize EMF generation with neutral-axis brush placement, minimizing short-circuit losses.

Odd-Slot Wave Winding: Exclusive odd-numbered commutator configuration eliminates closed-loop failures in permanent magnet applications through asymmetrical connectivity.

Dynamic Neutral Calibration: Laser-aligned brush holders maintain optimal commutation timing under thermal expansion.

Critical implementations include:
• Single-turn heavy gauge conductors for reduced eddy currents in high-current operations
• Multi-turn fractional-pitch coils enhancing torque smoothness in precision drives
• Press-fit commutator construction preventing bar displacement at 10,000 RPM
• Accessible undercutting ports for mica maintenance

The 132-frame motor executes:

Bidirectional power flow (motoring/generating) with <5% harmonic distortion

Real-time EMF monitoring via test terminals

Thermally stable varnishes preventing inter-turn shorts

Rigid shaft grounding to dissipate static charges

Validated for traction and servo applications, this variable speed DC gear motor achieves conversion efficiency through synchronized winding-commutator geometry. All armature assemblies undergo impulse testing to verify slot-to-bar alignment prior to dynamic balancing.

Main Technical Parameters

Production Details

Frame

• Compact and robust iron casting frame

• Universal IEC and NEMA installation dimensions available

• Customizable outlook and dimensions

---

Armature

• 99.9% pure copper bar for armature to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the copper bars are fitted in by handwork to ensure all slots are full and avoid any possible flaw.

---

Winding:

• All windings are made of pure copper to assure induction efficiency

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

Cement

Oil gas

Steel

Sugar

CHOOSE AIMIN, CHOOSE QUALITY!
