Shunt Machine

Shunt Machine

Z4-200-31 low rpm DC motor shunt machine for wind turbine used in industry can be widely applied in metallurgical industry, such as rolling mill, metal cutting machine, paper-making, textile, printing, cement, plastic extruder and other industry. It is suitable for situations that require wide speed control scope, electric dragging where overload ability should not exceed 1.6 times.

Description

Technical Parameters

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of shunt machine in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.



Brief Introduction



Users should take into consideration of the following aspects when choosing a Z4-200-31 shunt machine used for wind turbine.



1. Power demand: according to the actual demand for electricity to choose the right power motor, to ensure the stability and reliability of the power generation system.



2. Wind conditions: different regions have different wind conditions, choose the Z4 motor suitable for the local wind speed, can improve power generation efficiency.



3. Installation environment: Consider the installation environment of the Z4 motor, such as temperature, humidity, wind and sand, etc., and choose the suitable protection level to prolong the service life of the equipment.



4. Brand and after-sales service: Choose products of well-known brands to ensure product quality and after-sales service, and reduce the cost of post maintenance.



With the global emphasis on renewable energy, the wind power market will continue to grow. As an important part of this field, Z4 motor will continue to develop under the impetus of technological innovation and market demand. In the future, intelligent and modular wind turbine shunt machine will become the trend, providing users with more efficient and convenient power solutions.



Z4 motor is gradually becoming an indispensable part of the modern energy system due to their high efficiency and environmentally friendly features. Whether in the family, agriculture or scientific research, its application prospects are broad and worth our expectation.



Main Technical Parameters



Frame

#200-31

Power Scope

27kW~90kW

Voltage

400V, 440V

Exciting Mode

Separately Excited

Speed

450~1500rpm

Cooling Method

IC06

Protection Grade

IP21S

Insulation Class

F (155℃)

Duty

S1

Mounting Type

IM B3

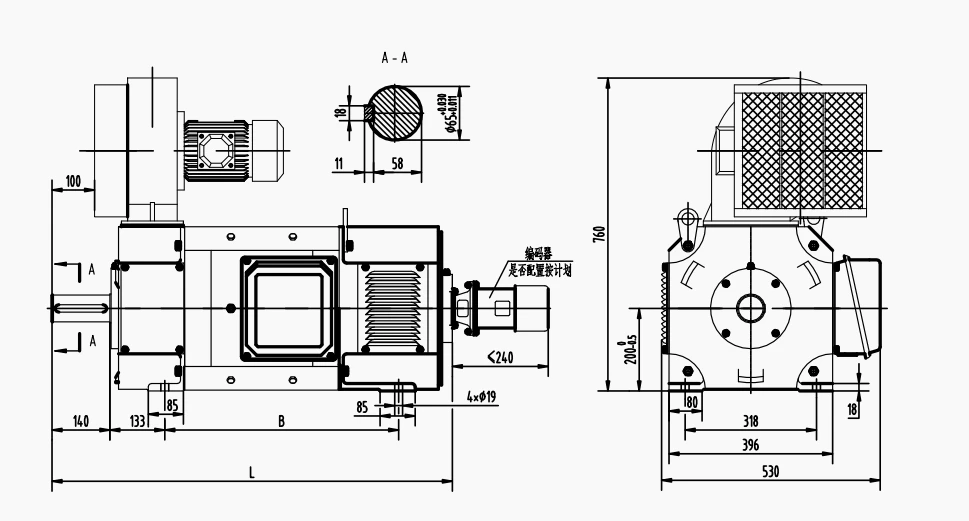

Outline Dimensions



Shunt Machine-Outline Dimensions





Applications



Shunt Machine-Cement

Cement

Shunt Machine-Power Station

Power Station

Shunt Machine-Pump

Pump

Shunt Machine-Sugar

Sugar

product-1-1 CHOOSE AIMIN, CHOOSE QUALITY!

Hot Tags: shunt machine, China, suppliers, manufacturers, factory, customized , quotation, low price, in stock, made in China, 180v dc motor, locomotive motor, dc traction motor, 220 v dc motor, industrial dc motor, shunt wound dc motor

Type

Rated Power

kW

Speed

r/min

Rated Current

A

Speed with Field Weakened

r/min

Exciting Power

W

Armatur Circuit Resistance

Ω

Armatur Inductance

mH

Magnetic Inductance

H

External Inductance

mH

Efficiency

%

Moment of Inertia

kg・m²

Weight

Kg

Z4-200-31 27-90 450-1350 82.7-224 750-2800 1360 0.0754-0.575 2.5-16.5 8.2-8.7 / 79.5-89.8 4.8 565
