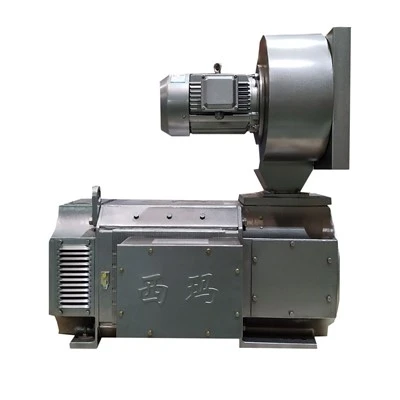

Z4-280-41B DC 90 Kw Motor 400V

AIMIN ELECTRICS CO., LTD. is one of the leading manufacturers and suppliers of Z4-280-41B DC 90 Kw Motor 400V in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

Xi'an AIMIN Motor's Z4 series DC motors are high-performance separately excited direct current motors, engineered to match static rectifier power supplies and meet demanding variable-speed industrial drive requirements. As a core member of this lineup, the 90kw motor model Z4-280-41B represents the mature design and reliable craftsmanship of the Z4 family. This series follows the JB/T6318 national standard, with robust mechanical structure, outstanding commutation performance and low moment of inertia, which makes it ideal for applications requiring frequent speed adjustment, forward and reverse rotation, as well as heavy-duty starting.

The Z4 series adopts separate excitation design, separating the excitation circuit from the armature circuit to achieve flexible and stable speed regulation. The speed range of this 90kw motor spans 400 r/min to 1600 r/min. It runs at 400V rated voltage, 265A armature current and 12.7A excitation current. The thermal class reaches 155, with IP21S protection grade and IC06 cooling method. It can work stably under ambient temperature from 0℃ to 40℃ at altitudes up to 1000 meters. The driving end uses 6320/C3 bearing while the non-driving end is equipped with 6218/C3 bearing, delivering long service life and low running noise. The S1 continuous working duty enables the motor to run nonstop for long hours without overheating risk.

Compared with traditional Z2 and Z3 DC motors, Z4 series has smaller volume, lighter weight and better dynamic response. It can be directly powered by thyristor rectifier units, eliminating the need for intermediate rotary converters. The excellent control characteristic allows smooth stepless speed adjustment, adapting to diverse working conditions. Typical application fields include metallurgical rolling equipment, heavy machine tools, papermaking machinery, printing lines, textile equipment, plastic extruders and hoisting transport machinery. In these scenarios, stable torque output and precise speed control are critical to production quality.

Manufactured by Xi'an AIMIN Motor, a professional motor supplier, every unit undergoes strict factory inspection before delivery. This 90kw motor, together with other specifications in Z4 series, has gained wide recognition in global industrial markets. The whole series features reliable insulation system, optimized magnetic circuit design and reinforced frame structure to resist vibration and shock during operation. CE certification is available to support overseas export business.

AIMIN Z4 DC motors are the preferred choice for industrial variable-speed drive systems. With solid quality, flexible performance and complete technical support, they provide long-term, dependable power solutions for modern manufacturing.

Main Technical Parameters

Production Details

Frame

• Compact and robust iron casting frame

• Universal IEC  installation dimensions available

• Customizable outlook and dimensions

---

Armature

• 99.9% pure copper bar for armature to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the copper bars are fitted in by handwork to ensure all slots are full and avoid any possible flaw.

---

Winding:

• All windings are made of pure copper to assure induction efficiency

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

Cement

Oil gas

Steel

Sugar

CHOOSE AIMIN, CHOOSE QUALITY!
